Ajax MultiTransmitter black ЕU

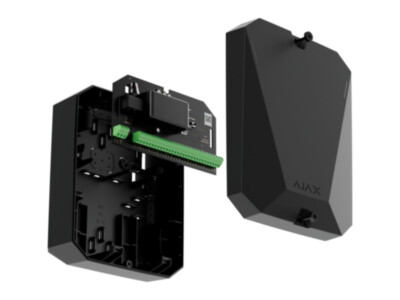

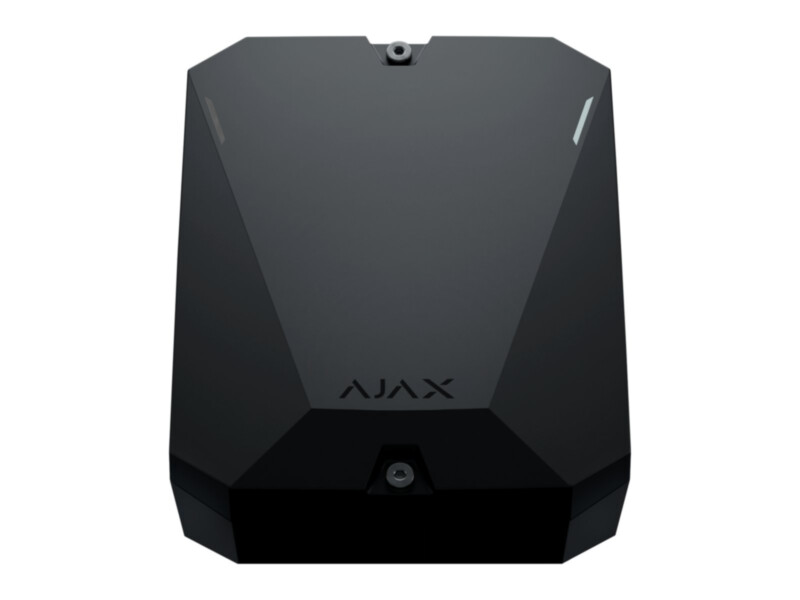

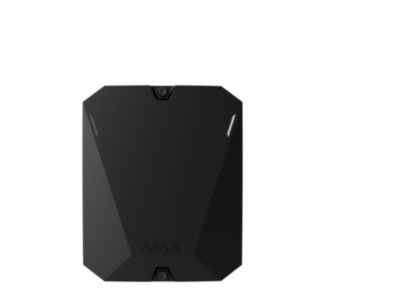

Ajax MultiTransmitter Jeweller is an integration module that connects an existing wired alarm system to Ajax. It has 18 wired zones for detectors with NC, NO or EOL connection — several devices can share one zone.

The old cabling and detectors can therefore stay in place while modern control is added: notifications on the phone, an event log and a monitoring station connection. The module distinguishes 15 event types (tamper, intrusion, fire, panic, medical assistance and others), so every zone appears in the app under the right name.

Cable runs of up to 400 m are supported, the operating mode is pulse or bistable, and the EOL resistance can be chosen between 1 and 7.5 kΩ. The module communicates with the hub over Jeweller radio at a range of up to 2,000 m, and two tampers report opening of the enclosure or its removal from the wall.
