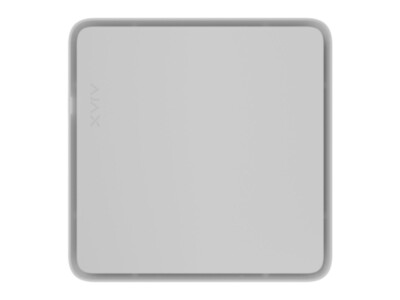

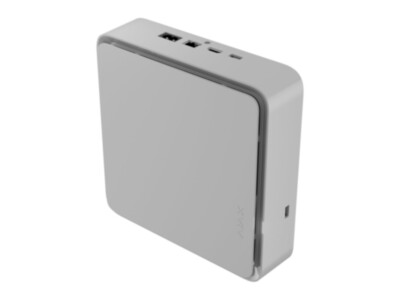

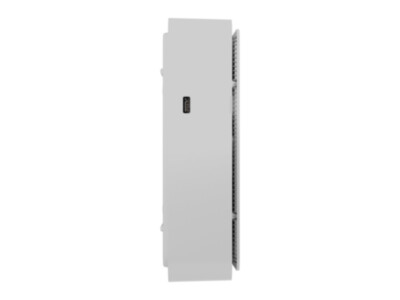

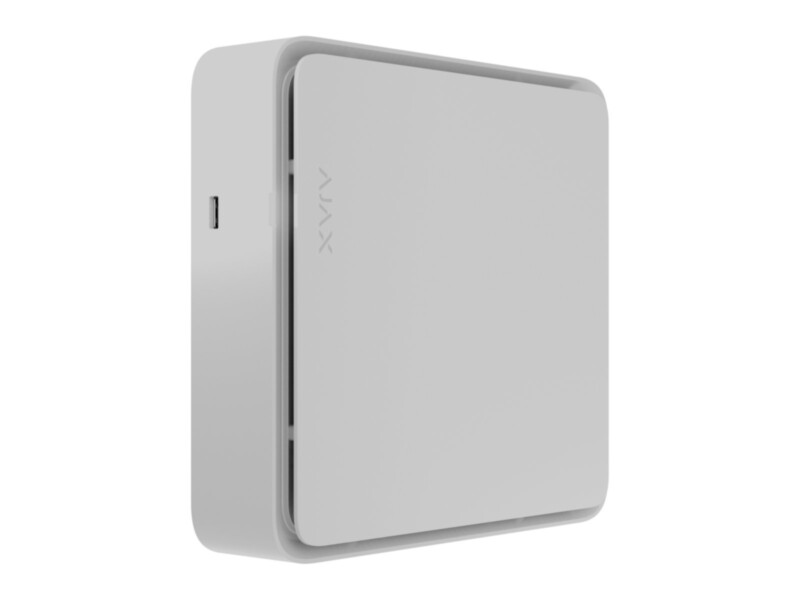

Ajax NVR (8ch) HAC white

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€313.92 €389

Pre-order

SKU

134500.122.WH1

Product files

Datasheet

Product details

Product parameters
Manufacturer	Ajax
Length	212
Width	212
Height	64

Toote kirjeldus

Ajax NVR HAC (8-ch) is a network video recorder that brings up to 8 cameras – Ajax cameras and third-party IP cameras with ONVIF Profile G/S and RTSP – into the Ajax system. Video is viewed and managed in the same Ajax app as the security system.

It records up to 8 MP in H.265/H.264 to one SATA drive (HDD or SSD up to 16 TB, not included). The recorder analyses motion in the frame and, with Ajax cameras, detects objects with AI; an alarm from an Ajax detector can bring the camera image straight to the front. An HDMI output (up to 1920 × 1080) lets a monitor be connected, and two USB ports take a keyboard, mouse or flash drive.

Key features

8 channels, recording up to 8 MP
Ajax cameras and ONVIF G/S, RTSP cameras
1 × SATA up to 16 TB (drive not included)
Motion detection, AI object detection with Ajax cameras
HDMI up to 1080p, 2 × USB
Managed and viewed in the Ajax app

Technical data

Type	network video recorder, 8 channels
Recording resolution	up to 8 MP
Video codec	H.265, H.264
Storage	1 × SATA HDD/SSD up to 16 TB (not included)
Ports	1 × RJ-45 (10/100 Mbit/s), HDMI, 2 × USB 2.0
Bandwidth	in up to 80 Mbit/s, out up to 40 Mbit/s
Protocols	ONVIF Profile G/S, RTSP
Power supply	110–240 V~, up to 24 W
Colour	white
Protection rating	IP20
Operating temperature	0 to 40 °C
Operating humidity	up to 75%
Dimensions	212 × 212 × 64 mm
Weight	782 g (without drive)
Warranty	24 months
