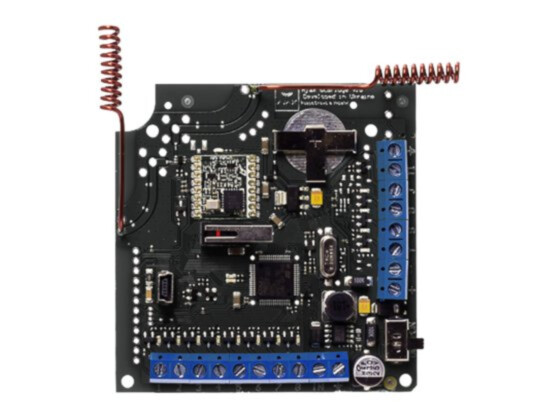

Ajax ocBridge Plus EU

Ajax ocBridge Plus is a receiver that makes Ajax wireless detectors usable with any wired or hybrid control panel. The module is installed in the panel's enclosure and its outputs are wired to the panel's zone inputs – to the panel, the Ajax detectors behave like ordinary wired detectors.

ocBridge Plus has 12 transistor outputs: 8 security zones and 4 service outputs (low battery, tamper, jamming, detector loss). The outputs work in pulse or bistable mode. Configuration and radio tests are done with the Windows configurator on a PC. It communicates with the detectors over two-way encrypted Jeweller radio at up to 2,000 m.
