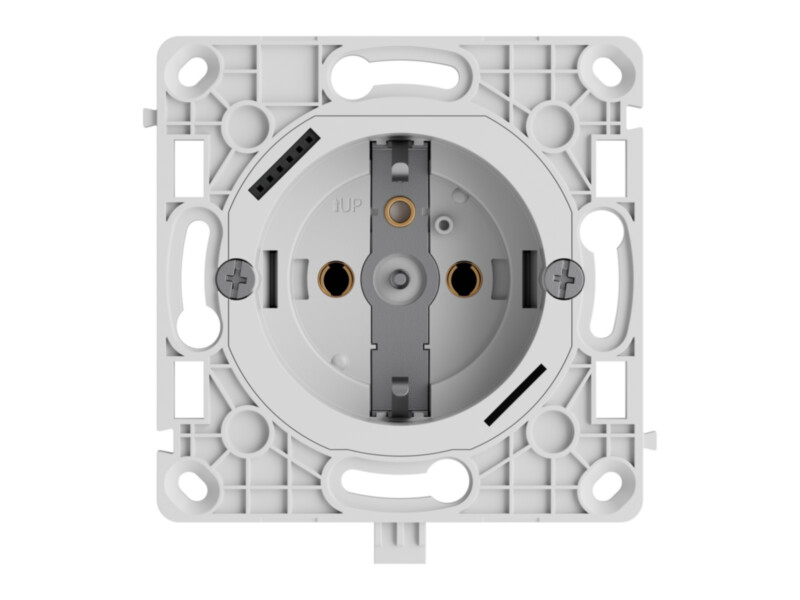

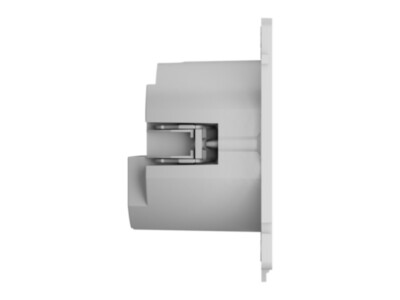

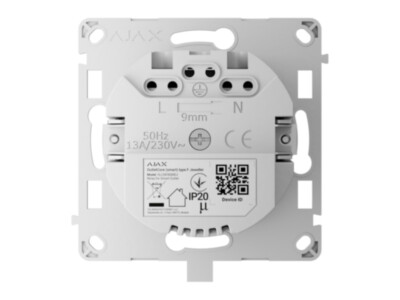

Ajax OutletCore (smart) type F

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€58.17 €72

Pre-order

SKU

72569.165.WH1

Product files

Datasheet

Product details

Product parameters
Manufacturer	Ajax

Toote kirjeldus

Ajax OutletCore (smart) [type F] Jeweller is the working part (relay) of the Ajax Outlet flush-mounted smart socket; it goes into a standard flush box in place of the old socket. The cover (SoloCover, SideCover or CenterCover) is chosen to suit the installation and sold separately.

The socket is controlled from the Ajax app, by schedule and automation scenarios, and with the touch button on the panel. The energy monitor shows current, voltage, power and energy used by the connected appliances. The socket switches off when the current exceeds the selected limit (1–16 A), the voltage leaves the 184–253 V range or the temperature rises above 95 °C. An LED frame shows the state and load, and child-protection shutters stop objects being pushed in. It communicates with the hub over Jeweller radio at up to 1,100 m.

Key features

Relay of the Outlet [type F] flush smart socket, cover sold separately
Load up to 3 kW (resistive, 230 V)
Energy monitor: current, voltage, power, energy
Protection: current 1–16 A, voltage 184–253 V, temperature above 95 °C
Shut-off timer 10 s to 2 h, touch button
Child-protection shutters
Jeweller radio up to 1,100 m

Technical data

Type	socket relay, type F (Schuko)
Compatible with	SoloCover / SideCover / CenterCover (smart) [type F]
Radio communication	Jeweller, up to 1,100 m in open space
Power supply	230 V~, 50 Hz
Switched power	up to 3 kW
Protection	current 1–16 A (adjustable), voltage 184–253 V, temperature > 95 °C
Average consumption	up to 1.5 W
Electric shock protection	Class I (earthed)
Service life	at least 150,000 switchings
Protection rating	IP20
Operating temperature	0 to 40 °C
Operating humidity	up to 75% (non-condensing)
Dimensions	72.5 × 76 × 44.4 mm
Weight	75 g
Form factor	European type (55)
Warranty	24 months
