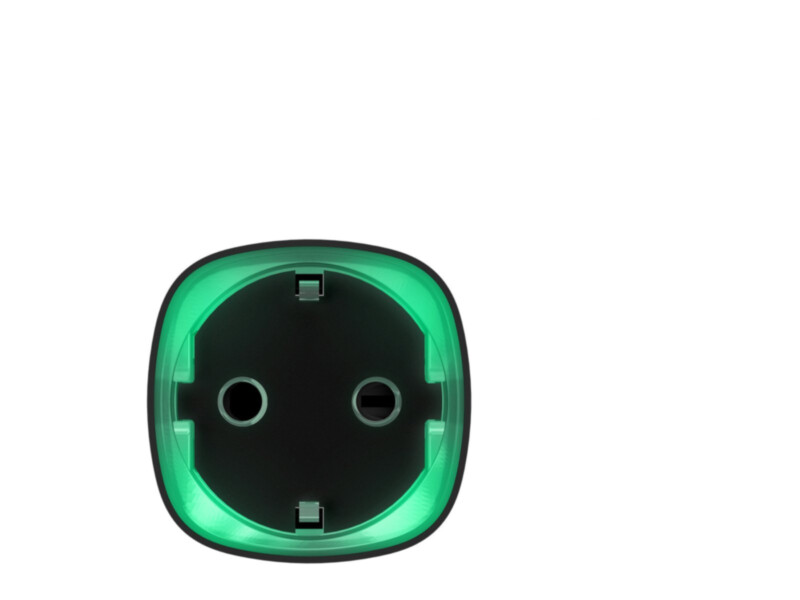

Ajax Socket black EU (EU plug)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€94.46 €117

Pre-order

SKU

38210.34.BL1

Product files

Datasheet

Product details

Product parameters
Manufacturer	Ajax
Length	45
Width	45
Height	66

Toote kirjeldus

Ajax Socket (type F) Jeweller is a wireless smart plug that goes into a standard type F (Schuko) wall socket and lets the Ajax app switch electrical appliances on and off. No installation or wiring is needed.

The energy monitor shows current, voltage, power and energy used by the connected appliance. The plug switches off when the current exceeds 11 A, the voltage leaves the 184–253 V range or the temperature rises above 85 °C. Automation scenarios switch appliances on a change of security mode, by schedule, on alarm or by detector readings; the mode can be bistable or pulse (1–255 s). An LED frame shows the state and load, and child-protection shutters stop objects being pushed in.

Key features

Plug-in smart socket, type F (Schuko)
Load up to 2.5 kW (230 V)
Energy monitor
Protection: current above 11 A, voltage 184–253 V, temperature above 85 °C
Bistable or pulse mode (1–255 s)
Child-protection shutters
Jeweller radio up to 1,000 m

Technical data

Type	smart plug, type F (Schuko)
Radio communication	Jeweller, up to 1,000 m in open space
Power supply	110–230 V~, 50/60 Hz
Switched power	up to 2.5 kW (230 V), continuous current 11 A
Protection	current > 11 A, voltage 184–253 V, temperature > 85 °C
Average consumption	up to 1 W
Electric shock protection	Class I (earthed)
Colour	black
Protection rating	IP20
Operating temperature	0 to 40 °C
Operating humidity	up to 75% (non-condensing)
Dimensions	45 × 45 × 65.5 mm
Weight	58 g
Warranty	24 months
