Ajax Transmitter ЕU

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€62.98 €78

Pre-order

SKU

38184.18.NC1

Product files

Datasheet

Product details

Product parameters
Length	100
Width	39
Height	22

Toote kirjeldus

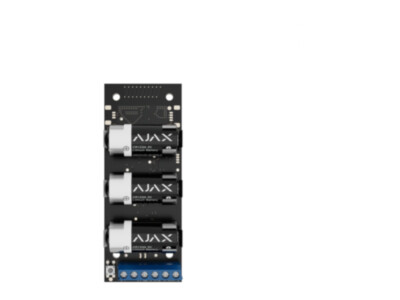

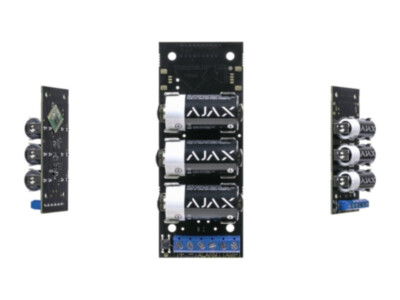

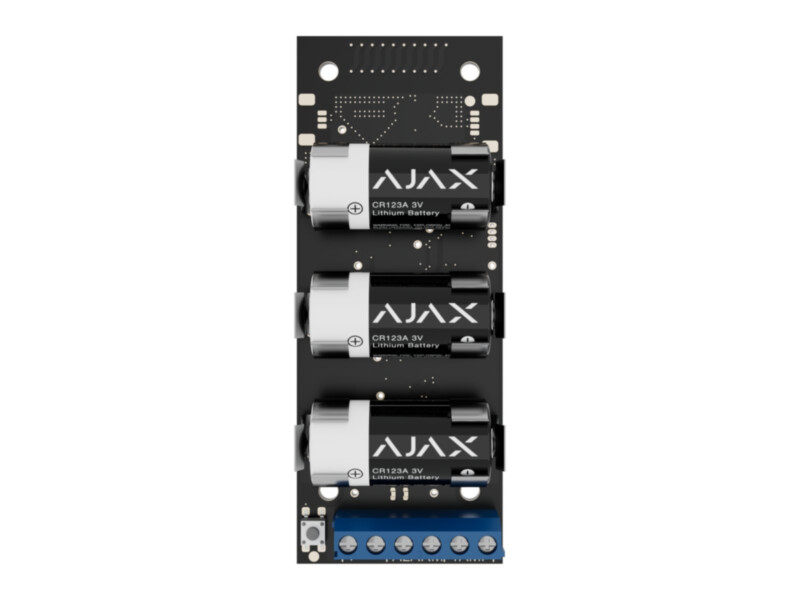

Ajax Transmitter Jeweller is a small integration module that brings one existing wired detector into an Ajax system. It has two pairs of terminals — one for the detector's alarm signal and one for its tamper — and supplies 3.3 V to the connected device.

Detectors with NO or NC contacts can be connected, and the cable may run up to 130 m (twisted pair). The operating mode can be pulse or bistable, and the detector's role can be either to report alarms or to switch security modes.

The installer picks the event type from 14 options — intrusion, fire, panic button, gas alarm, malfunction and others — which determines the wording of the notification in the app. Communication with the hub is encrypted and frequency-hopping, and tamper protection reports opening of the enclosure.

Features

Connects one wired detector to an Ajax system
3.3 V power output for the connected device
NO and NC contacts with a separate tamper input
Cable runs of up to 130 m (twisted pair)
Pulse or bistable operating mode
14 event types to set the wording of the notification
Encrypted Jeweller radio and tamper protection

Technical data

Communication protocol	Jeweller
Radio frequency band	866.0–866.5 MHz / 868.0–868.6 MHz / 868.7–869.2 MHz / 905.0–926.5 MHz / 915.85–926.5 MHz / 921.0–922.0 MHz / Depends on the sales region.
Radio communication range	up to 1600 m
Radio communication encryption	Yes
Protection against spoofing	Yes
Operating temperature range	from / −25 °C up to +50 °C
Operating humidity	up to 75%
Dimensions (L × W × H)	100 × 39 × 22 mm
Weight	74 g
Warranty	24 months
