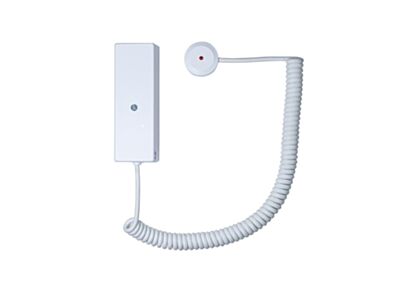

Alarmtech GD 470-SJ glued glass break detector with spiral cable and junction box

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€110.00 €136

Pre-order

SKU

6310407

Product files

Datasheet

Toote kirjeldus

Alarmtech GD 470-SJ is a small detector that is glued directly onto the glass and reacts to the vibration of breaking glass. It has a relay output, so it connects straight to an input of the control panel.

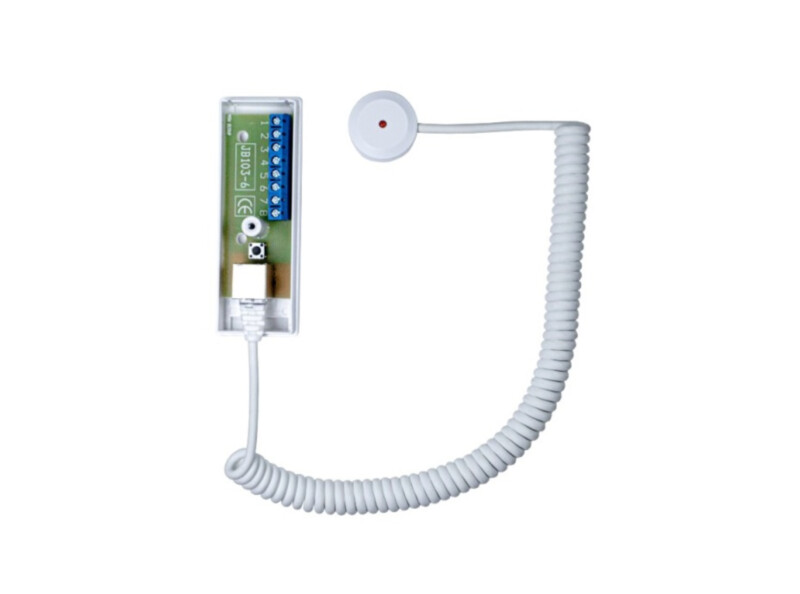

The detector comes with a spiral cable (35–70 cm) and the JB 103-6 junction box. The modular plug lets you disconnect the detector from the loop quickly, for example when a window is re-glazed. IP67, −40…+70 °C, approved to EN 50131-2-7-2 and VdS Class B.

Features

Glued directly onto the glass
Relay output, direct connection to the panel
Spiral cable with modular plug and JB 103-6 box
IP67, −40…+70 °C, LED indication
EN 50131-2-7-2, VdS Class B

Technical data

Alarm indication	LED
Maximum coverage	2 m radius (glass up to 8 mm, P8B)
Approvals	EN 50131-2-7-2 Grade 2 (EN-ST-000290), VdS 2332 Klasse B (G122508), SBSC 22-95 (Class 2)
Supply voltage	5-15 VDC
Current consumption	1,5 mA (3 mA in alarm state)
Alarm output	Transistor output
Tamper protection	Yes
Alarm hold time	Latching
Connection	Spiral cable (35 cm – 70 cm) made of PUR with RJ10 contact
Housing material	ABS Plastic
Colour	White
Operating temperature	-40–+70°C
Housing protection class	IP 67
Dimensions (H x Ø), mm	11 x 26
Dimensions (L x W x H), mm	91 x 31 x 23 (box)
Grade	Grade 3
