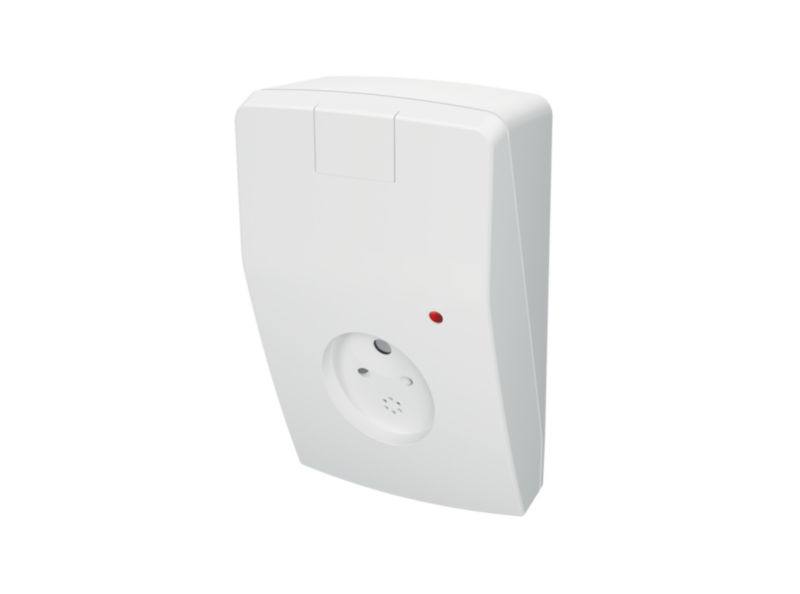

Alarmtech AD 800-AM acoustic glass break detector with anti-mask, Grade 3

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€159.60 €198

In stock 1

SKU

6309449

Product files

Datasheet

Toote kirjeldus

Alarmtech AD 800-AM is the Grade 3 version of the AD 800 acoustic glass break detector. It adds an active anti-mask function with its own relay output: if someone tries to cover or tamper with the microphone, an anti-mask alarm is raised.

Digital Room Compensation (DRC) adapts to the room's acoustics, giving high immunity to false alarms. Mounted on the ceiling or a wall opposite the glass, it covers 165° and detects standard, tempered and laminated glass. Meets EN 50131-2-7-2 Grade 3.

Features

Active anti-mask with separate relay output
EN 50131-2-7-2 Grade 3
Digital Room Compensation, 165° coverage
Standard, tempered and laminated glass up to 6 × 6 m
7–30 VDC, intrusion and fault relays

Technical data

Approvals	class B, EN-ST-000238 Grade 3, FG, NBÚ CZ Typ 3, NBÚ SK Typ 3, VdS G117504
Maximum glass surface	6 x 6 m
Supply voltage	7–30 VDC
Current consumption	12 mA @ 12 V, 7.3 mA @ 24 V
Alarm output	50 V DC/peak AC, NC 50 mA, Rs ≤30 Ω
Contact rating	50 mA, 50 V DC/peak AC, Rs ≤30 Ω
Alarm indication	LED

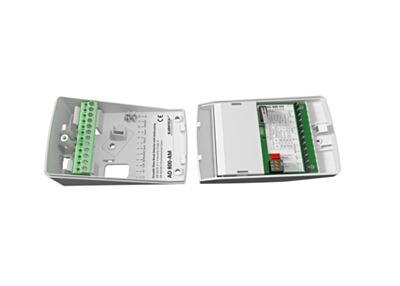

Connection	Screw terminals
Housing protection class	IP 31
Dimensions (L x W x H), mm	68 x 109 x 40
INTRUSION and FAULT relay contact rating	NC 50 mA
Grade	Grade 3
