Alarmtech MC 247 magnetic contact | silver | recessed | 2xNC | IP67 | G2 | 2 m cable

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€30.60 €38

Pre-order

SKU

6332714

Product files

Datasheet

Product details

Product parameters
Manufacturer	Alarmtech
Length	37
Width	11
IP kaitseaste	IP67
Turvakategooria	Grade 2
Sobib terasustele	With accessories
Paigaldusviis	Flush mount

Toote kirjeldus

Alarmtech MC 247 has two independent NC reed switches in one contact. One output can go to the intruder alarm and the other to access control or another system, so a single contact monitors the door for both.

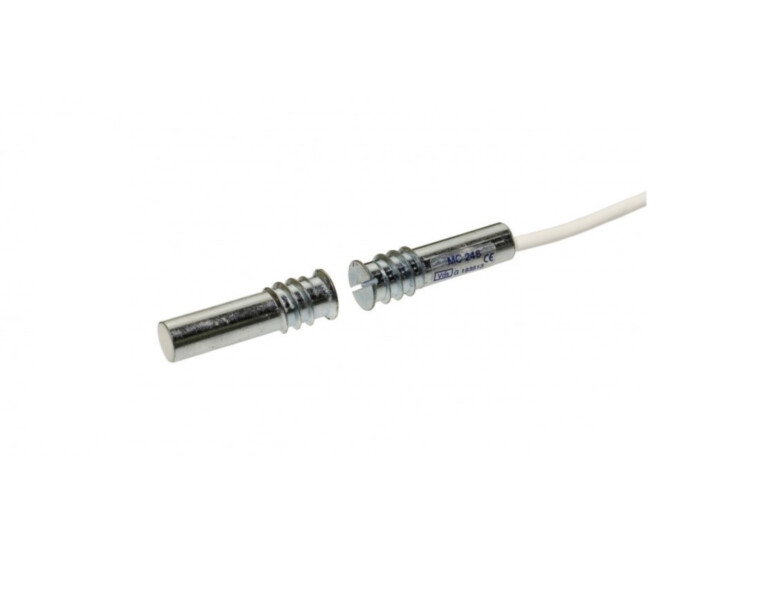

Contact and magnet are threaded aluminium-alloy screws for a 9–10 mm hole in wood or plastic; the contact is epoxy sealed and IP67. Approved to EN 50131-2-6 Grade 2. Steel frames are handled with Alarmtech's strong-magnet adapters.

Features

Two independent NC outputs (2 × NC)
Recessed, 9–10 mm hole, threaded body
EN 50131-2-6 Grade 2
Epoxy-sealed contact, IP67, −40…+70 °C
Available with 2, 6 or 10 m cable

Technical data

Cable length	2 m
Approvals	Class IIIA, CNPP 2124030001C0, EN 50131-2-6 Grade 2, GRADE 2 + RTC, INCERT B-582-1003, SBSC 9-198
Contact rating	48 VDC / 500 mA / 10 VA
Operating temperature	-40°C – +70°C
Housing protection class	IP 67
Drill diameter, mm	9-10
Make distance (wood), mm	23
Make distance (steel), mm	–
Contact dimensions (L x Ø), mm	37 x 11
Magnet dimensions (L x Ø), mm	37 x 11
Grade	Grade 2
