Alarmtech MC 240-10 magnetic contact | silver | recessed | NC | IP67 | G2 | 10 m cable

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€26.50 €33

In stock 2

SKU

6332703

Product files

Datasheet

Product details

Product parameters
Manufacturer	Alarmtech
IP kaitseaste	IP67
Turvakategooria	Grade 2
Sobib terasustele	With accessories
Paigaldusviis	Flush mount

Toote kirjeldus

Alarmtech MC 240 is a universal magnetic contact with a normally closed (NC) reed switch for intruder alarm and access control systems. It monitors doors and windows against unauthorised opening and meets EN 50131-2-6 Grade 2.

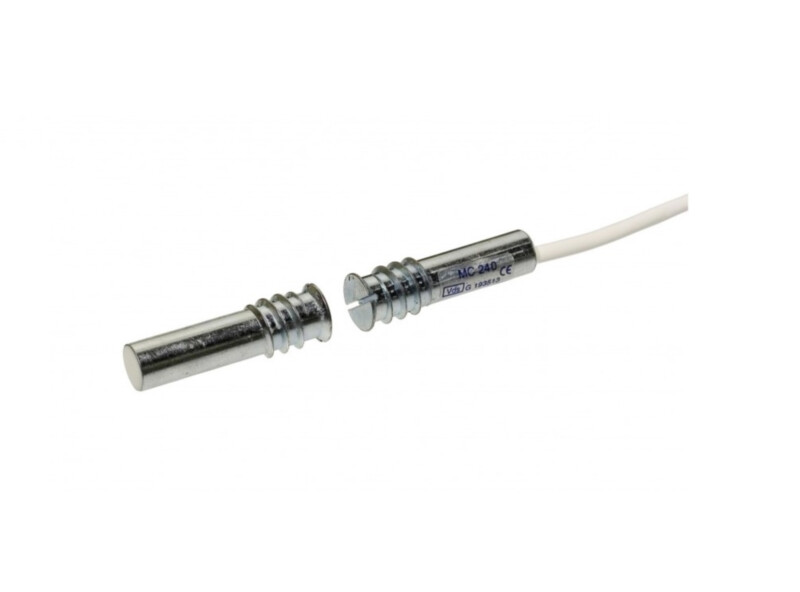

Both the contact and the magnet are threaded aluminium-alloy screws that are simply screwed into a 9–10 mm hole in wood or plastic. The contact part is sealed with epoxy, which makes it water resistant (IP67). With Alarmtech's flanges and adapters the contact can also be fitted to steel doors, hatches and garage doors.

Features

Recessed mounting, threaded aluminium-alloy body
NC reed switch, 48 VDC / 500 mA / 10 VA
EN 50131-2-6 Grade 2, VdS Class B, INCERT, SBSC
Epoxy-sealed contact, IP67, −40…+70 °C
Steel doors with MC 200-S12 / MC 200-S32 adapters
Available with 2, 6 or 10 m cable

Technical data

Cable length	10 m
Approvals	Class 1/2,FG, Class IIIA, CNPP 2124030001A0, EN 50131-2-6 Grade 2, GRADE 2 + RTC, INCERT B-582-1003, NF&A2P, SBSC 9-196, VdS G 193513 Class B
Contact rating	48 VDC / 500 mA / 10 VA
Housing protection class	IP 67
Drill diameter, mm	9-10
Magnet type	Alnico 5
Make distance (wood), mm	27
Make distance (steel), mm	Depends on the accessories used
Contact dimensions (L x Ø), mm	37 x 11
Magnet dimensions (L x Ø), mm	37 x 11
Housing material	Metal
Mounting on steel	Only with accessories
Operating temperature	–40 – +70 °C
Grade	Grade 2
