Alarmtech MC 240-S56 magnetic contact | silver | floor mounted | for roller doors | IP67 | G2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€73.40 €91

Pre-order

SKU

6332707

Product files

Datasheet

Product details

Product parameters
Manufacturer	Alarmtech
IP kaitseaste	IP67
Turvakategooria	Grade 2
Sobib terasustele	Yes
Paigaldusviis	Surface mount

Toote kirjeldus

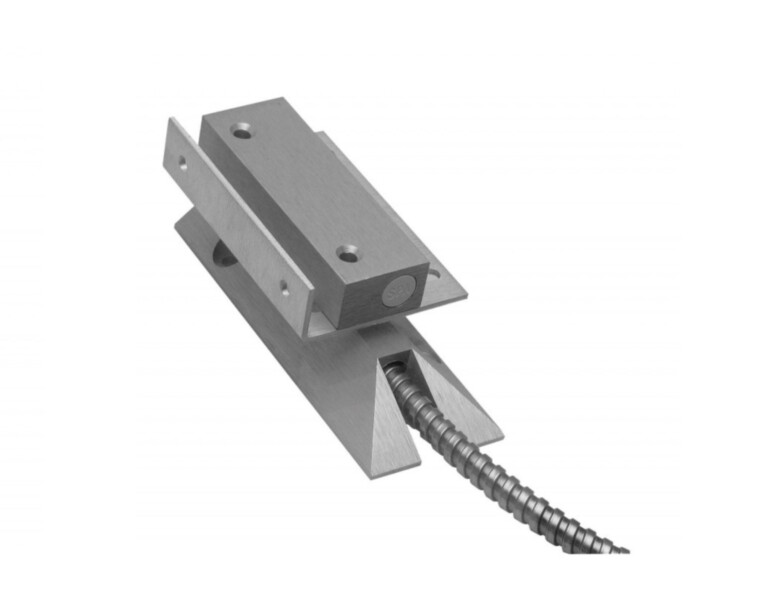

Alarmtech MC 240-S56 monitors garage doors and folding or overhead industrial gates. The NC contact is mounted in a heavy MC 200-6 aluminium housing on the floor – strong enough to be driven over by a vehicle – and the extra strong magnet in an MC 200-5 housing on the door.

The enclosed MC L bracket makes it easy to fit and adjust the magnet part, and a 1 m stainless steel flexible conduit (MC T4) protects the cable. Approved to EN 50131-2-6 Grade 2, IP67.

Features

Floor part withstands vehicle traffic
MC L bracket for the magnet included
Make distance 45 mm on wood, 34 mm on steel
1 m stainless steel flexible conduit
EN 50131-2-6 Grade 2, IP67

Technical data

Approvals	Class IIIA, EN 50131-2-6 Grade 2, INCERT B-582-0013, SBSC 9-196, VdS G 193513 Class B
Contact rating	48 VDC / 500 mA / 10 VA
Operating temperature	-40°C – +70°C
Housing protection class	IP 67
Magnet type	Alnico 5
Make distance (wood), mm	45
Make distance (steel), mm	34
Housing material	Aluminium
Contact dimensions (L x W x H), mm	104 x 40 x 15
Magnet dimensions (L x W x H), mm	74 x 25 x 15
Grade	Grade 2
