Alarmtech MC 270-6 magnetic contact | silver | recessed | NC | IP67 | G3 | 6 m cable

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€38.40 €48

Pre-order

SKU

6332731

Product files

Datasheet

Product details

Product parameters
Manufacturer	Alarmtech
IP kaitseaste	IP67
Turvakategooria	Grade 3
Sobib terasustele	With accessories
Paigaldusviis	Flush mount

Toote kirjeldus

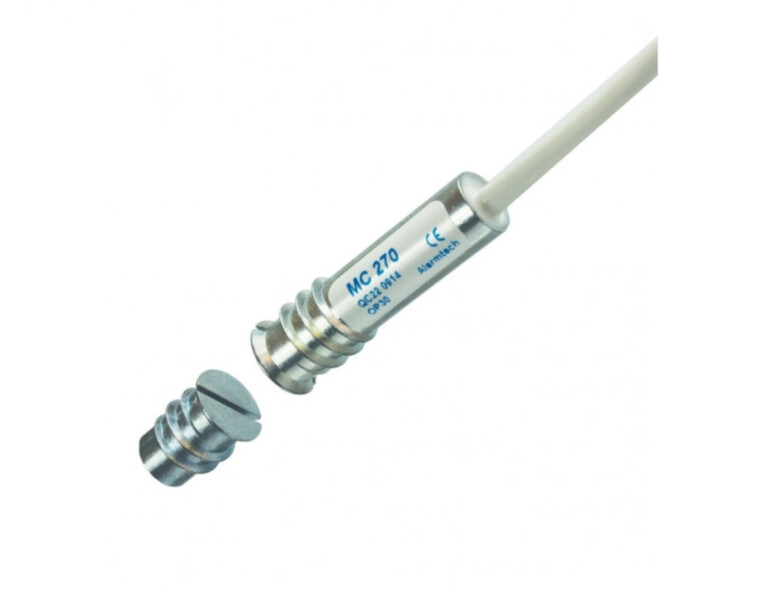

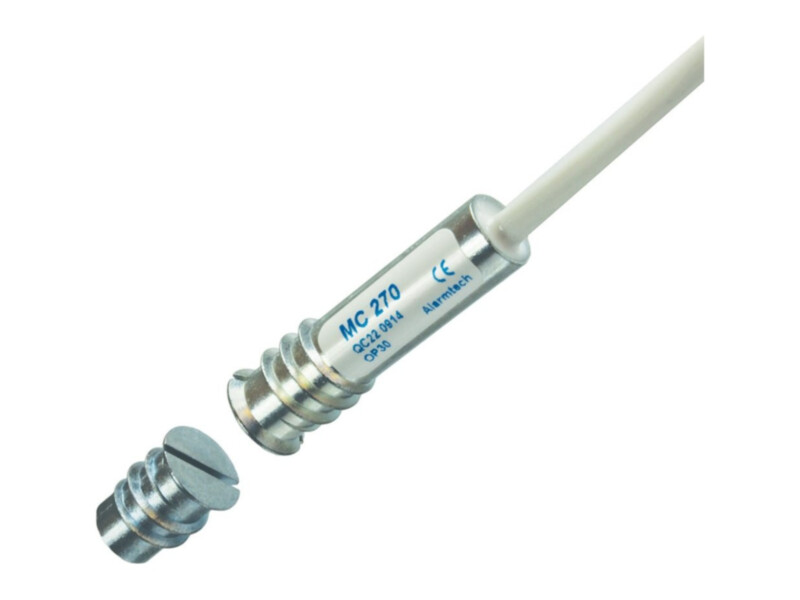

Alarmtech MC 270 is a Grade 3 magnetic contact for high-risk sites such as banks, museums, galleries and shops. The contact and its neodymium magnet are matched as a pair, which makes it hard to defeat the contact with an outside magnet.

Both parts are threaded aluminium-alloy screws for a 9–10 mm hole in wood or plastic; the contact is epoxy sealed and IP67. Approved to EN 50131-2-6 Grade 3 and VdS Class C. Replace the contact and magnet only together.

Features

EN 50131-2-6 Grade 3, VdS Class C
Paired contact and neodymium magnet
Recessed, 9–10 mm hole, threaded body
Epoxy-sealed contact, IP67, −40…+70 °C
Available with 2, 6 or 10 m cable

Technical data

Cable length	6 m
Approvals	Class 3/4,NBU-T02-21/2018, Class IIIA, EN 50131-2-6 Grade 3, INCERT B-582-1003, SBSC 9-205, VdS G 197063 Class C
Contact rating	48 VDC / 500 mA / 10 VA
Operating temperature	-40°C – +70°C
Housing protection class	IP 67
Drill diameter, mm	9-10
Magnet type	Neodymium (NdFeB)
Make distance (wood), mm	16

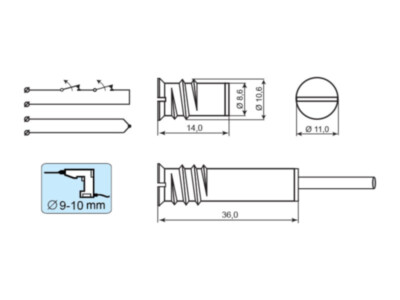

Contact dimensions (L x Ø), mm	37 x 11
Magnet dimensions (L x Ø), mm	14 x 11
Sabotage distance (wood), mm	5
Grade	Grade 3
