Alarmtech MC 270-S45 magnetic contact | silver | aluminium housing | IP67 | G3 | 6 m cable | resistors 2×2.2k

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€62.50 €78

Pre-order

SKU

MC270-2x2,2K-S45

Product files

Datasheet

Product details

Product parameters
Manufacturer	Alarmtech
IP kaitseaste	IP67
Turvakategooria	Grade 3
Sobib terasustele	With accessories
Paigaldusviis	Surface mount

Toote kirjeldus

Alarmtech MC 270-S45 with built-in resistors is the Grade 3 aluminium contact set for doors and gates with the loop resistors already fitted. The balanced loop connects straight to the control panel, which saves junction boxes and connection points.

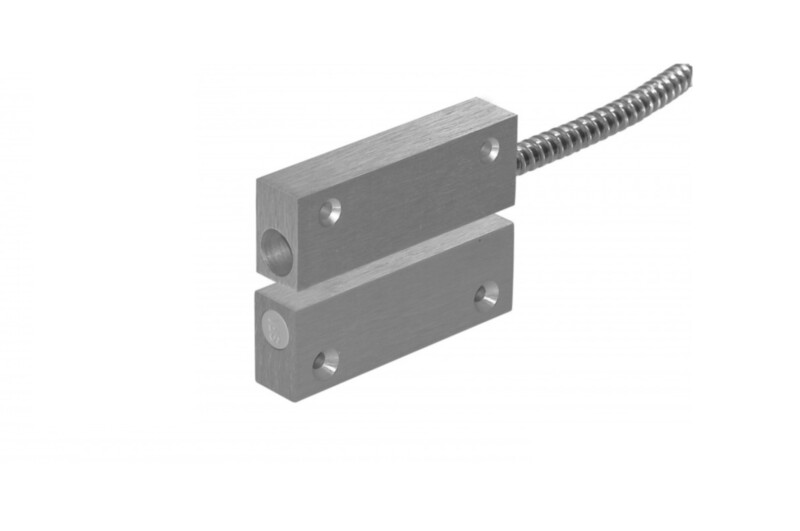

The paired contact sits in an MC 200-4 aluminium housing and the extra strong magnet in an MC 200-5 housing; the cable runs in a 1 m stainless steel flexible conduit. Approved to EN 50131-2-6 Grade 3 and VdS Class C, IP67.

Features

Built-in end-of-line resistors
EN 50131-2-6 Grade 3, VdS Class C
Aluminium housings, paired contact and magnet
1 m stainless steel flexible conduit
IP67

Technical data

Approvals	Class 3/4,F&P, Class IIIA, EN 50131-2-6 Grade 3, INCERT B-582-1003, NBÚ CZ Typ 3, NBÚ SK Typ 3, SBSC 9-205, VdS G 116029 Class C
Contact rating	48 VDC / 500 mA / 10 VA
Operating temperature	-40°C – +70°C
Housing protection class	IP 67
Make distance (wood), mm	34
Make distance (steel), mm	–
Contact dimensions (L x Ø), mm	74 x 25 x 15
Magnet dimensions (L x W x H), mm	74 x 25 x 15
Mounting on steel	Only with accessories
Sabotage distance (wood), mm	20
Normal operation	12 VDC
Grade	Grade 3
Built-in resistors	2 × 2.2 kΩ
Cable length	6 m
