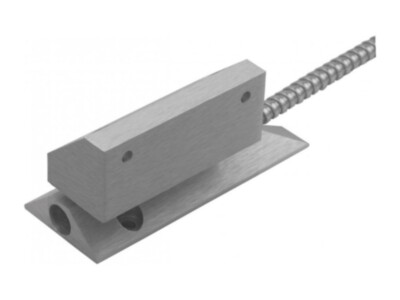

Alarmtech MC 270-S68 magnetic contact | silver | floor mounted | G3 | 6 m cable | resistors 2×2.2k

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€78.00 €97

Pre-order

SKU

E6332737

Product files

Datasheet

Product details

Product parameters
Manufacturer	Alarmtech
Height	2
IP kaitseaste	IP67
Turvakategooria	Grade 3
Sobib terasustele	Yes
Paigaldusviis	Surface mount

Toote kirjeldus

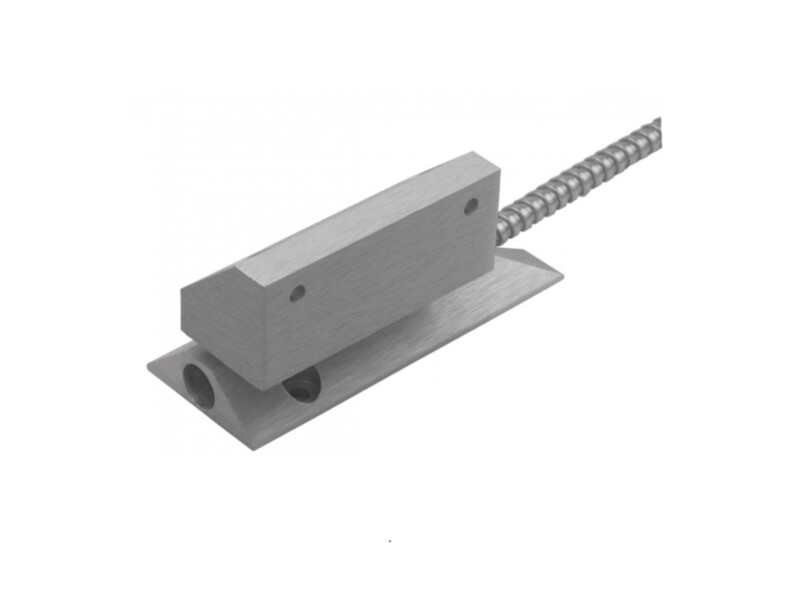

Alarmtech MC 270-S68 with built-in resistors is a Grade 3 set for garage doors and folding or overhead industrial gates. The paired contact sits in an MC 200-6 aluminium floor housing that bears the weight of a vehicle, and the extra strong magnet in an MC 200-8 housing gives a wide gap, also on steel.

The loop resistors are built in, so the contact connects straight to the control panel. The cable runs in a 1 m stainless steel flexible conduit. Approved to EN 50131-2-6 Grade 3 and VdS Class C, IP67.

Features

Built-in end-of-line resistors
EN 50131-2-6 Grade 3, VdS Class C
Floor housing withstands vehicle traffic
Make distance 36 mm on wood, 30 mm on steel
1 m stainless steel flexible conduit, IP67

Technical data

Approvals	Class 3/4,F&P, Class IIIA, EN 50131-2-6 Grade 3, INCERT B-582-1003, NBÚ CZ Typ 3, NBÚ SK Typ 3, SBSC 9-205, VdS G 116031 Class C
Contact rating	48 VDC / 500 mA / 10 VA
Operating temperature	-40°C – +70°C
Housing protection class	IP 67
Make distance (wood), mm	36
Make distance (steel), mm	30

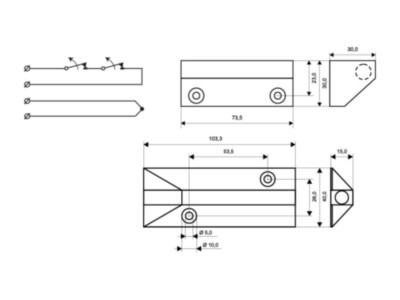

Contact dimensions (L x Ø), mm	104 x 40 x 15
Magnet dimensions (L x W x H), mm	74 x 30 x 30
Mounting on steel	Only with accessories
Sabotage distance (wood), mm	20
Sabotage distance (steel), mm	17
Grade	Grade 3
Built-in resistors	2 × 2.2 kΩ (2K2 + 2K2)
Cable length	6 m
