Alarmtech MC 347 magnetic contact | white | recessed | 2xNC | IP67 | G2 | 2 m cable

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€30.80 €38

In stock 32

SKU

6332784

Product files

Datasheet

Product details

Product parameters
Manufacturer	Alarmtech
IP kaitseaste	IP67
Turvakategooria	Grade 2
Sobib terasustele	With accessories
Paigaldusviis	Flush mount

Toote kirjeldus

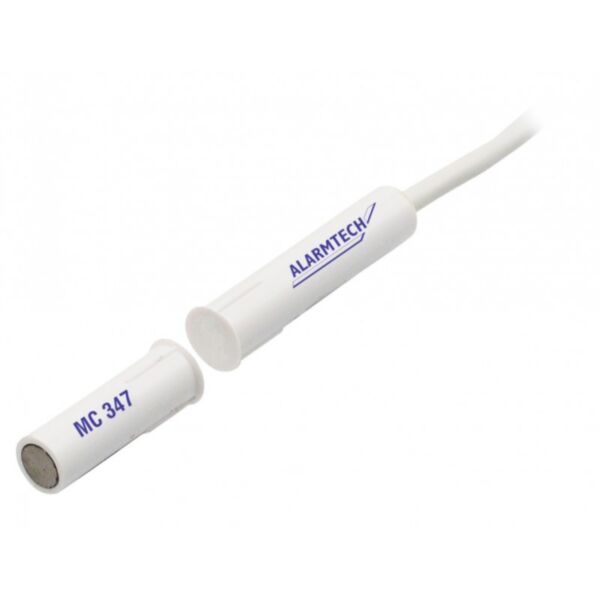

Alarmtech MC 347 has two independent NC reed switches, so one contact can report the same door to two systems – for example the intruder alarm and the access control system.

Contact and magnet are in waterproof IP67 plastic housings and go into an 8 mm hole in wood without accessories. Approved to EN 50131-2-6 Grade 2. MC 300 series accessories allow surface or other recessed installations.

Features

Two independent NC outputs (2 × NC)
Recessed into an 8 mm hole
EN 50131-2-6 Grade 2
IP67 plastic housing, −40…+70 °C
Available with 2, 5 or 10 m cable

Technical data

Cable length	2 m
Approvals	Class IIIA, CNPP 2124030002C0, EN 50131-2-6 Grade 2, GRADE 2 + RTC, INCERT B-582-1003, NF&A2P, SBSC 9-204
Contact rating	48 VDC / 500 mA / 10 VA
Operating temperature	-40°C – +70°C
Housing protection class	IP 67
Drill diameter, mm	8
Make distance (wood), mm	18
Make distance (steel), mm	–
Contact dimensions (L x Ø), mm	36 x 9
Magnet dimensions (L x Ø), mm	26 x 6
Grade	Grade 2
