Alarmtech MC 370-S11-10 magnetic contact | white | recessed | with adapters | IP67 | G3 | 10 m cable

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€47.40 €59

In stock 1

SKU

6332856

Product files

Datasheet

Product details

Product parameters
IP kaitseaste	IP67
Turvakategooria	Grade 3
Sobib terasustele	Yes
Paigaldusviis	Flush mount

Toote kirjeldus

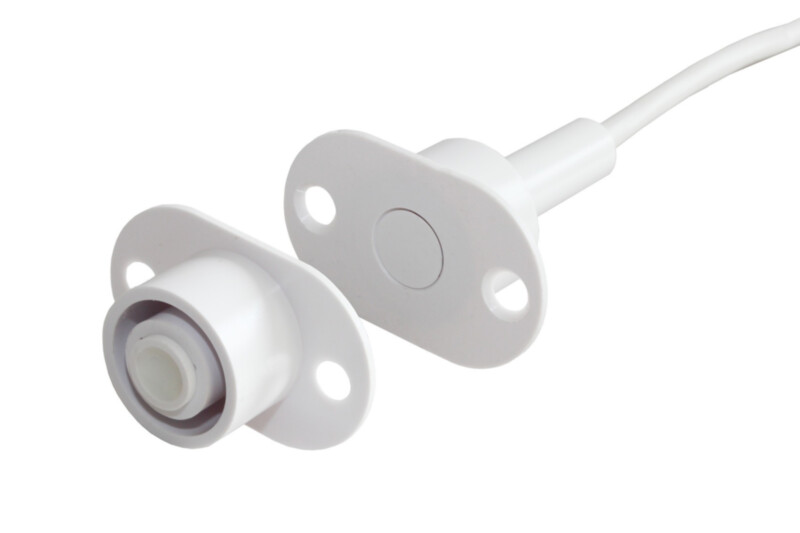

Alarmtech MC 370-S11 is the high-security MC 370 contact supplied with MC 300-S11 plastic flanges. The flanges are fixed with screws in a 19 mm hole in non-magnetic door and window frames and give a clean, secure recessed installation.

Contact and magnet are paired and in IP67 plastic housings. Approved to EN 50131-2-6 Grade 3 and VdS Class C.

Features

MC 370 contact + MC 300-S11 flanges
EN 50131-2-6 Grade 3, VdS Class C
Screw fixing in non-magnetic frames
IP67, −40…+70 °C

Technical data

Cable length	2 m
Approvals	Class 3/4,FG, Class IIIA, EN 50131-2-6 Grade 3, INCERT B-582-1003, NBÚ CZ Typ 3, NBÚ SK Typ 3, SBSC 9-207, VdS G 197064 Class C
Contact rating	48 VDC / 500 mA / 10 VA
Operating temperature	-40°C – +70°C
Housing protection class	IP 67
Drill diameter, mm	8
Make distance (wood), mm	16
Make distance (steel), mm	–
Contact dimensions (L x Ø), mm	36 x 9
Magnet dimensions (L x Ø), mm	14 x 9
Sabotage distance (wood), mm	5
Grade	Grade 3
