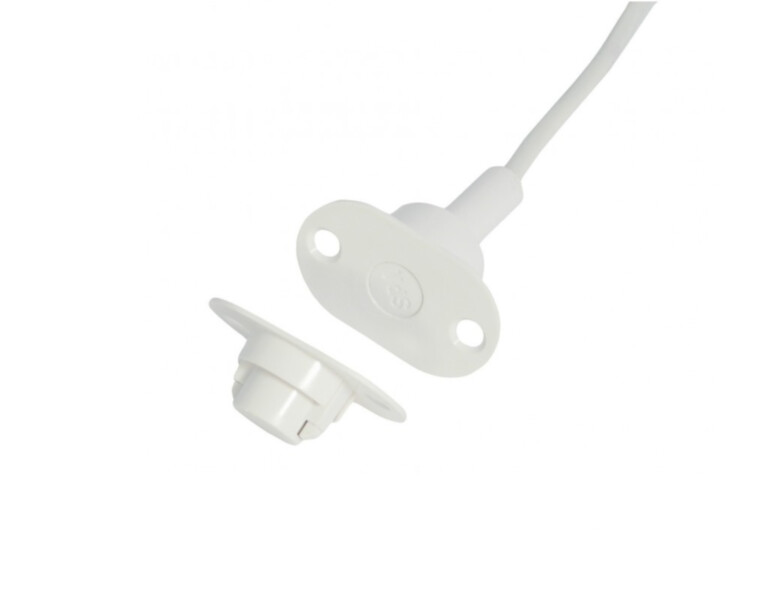

Alarmtech MC 370-S12-10 magnetic contact | white | recessed | IP67 | G3 | 10 m cable

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€49.70 €62

Pre-order

SKU

E6332799

Product files

Datasheet

Product details

Product parameters
Manufacturer	Alarmtech
IP kaitseaste	IP67
Turvakategooria	Grade 3
Sobib terasustele	Yes
Paigaldusviis	Flush mount

Toote kirjeldus

Alarmtech MC 370-S12 is the high-security MC 370 magnetic contact supplied with MC 300-S12 plastic adapters for recessed installation with screws in door and window frames.

Contact and magnet are paired, so the contact is hard to defeat with an outside magnet, and both are in waterproof IP67 plastic housings. Approved to EN 50131-2-6 Grade 3 and VdS Class C. Replace contact and magnet only together.

Features

MC 370 contact + MC 300-S12 adapters
EN 50131-2-6 Grade 3, VdS Class C
Paired contact and magnet
IP67, −40…+70 °C

Technical data

Cable length	10 m
Approvals	Class 3/4,FG, Class IIIA, EN 50131-2-6 Grade 3, INCERT B-582-1003, NBÚ CZ Typ 3, NBÚ SK Typ 3, SBSC 9-207, VdS G 197064 Class C
Contact rating	48 VDC / 500 mA / 10 VA
Operating temperature	-40°C – +70°C
Housing protection class	IP 67
Drill diameter, mm	8
Make distance (wood), mm	16
Make distance (steel), mm	–
Contact dimensions (L x Ø), mm	36 x 9
Magnet dimensions (L x Ø), mm	14 x 9
Sabotage distance (wood), mm	5
Grade	Grade 3
