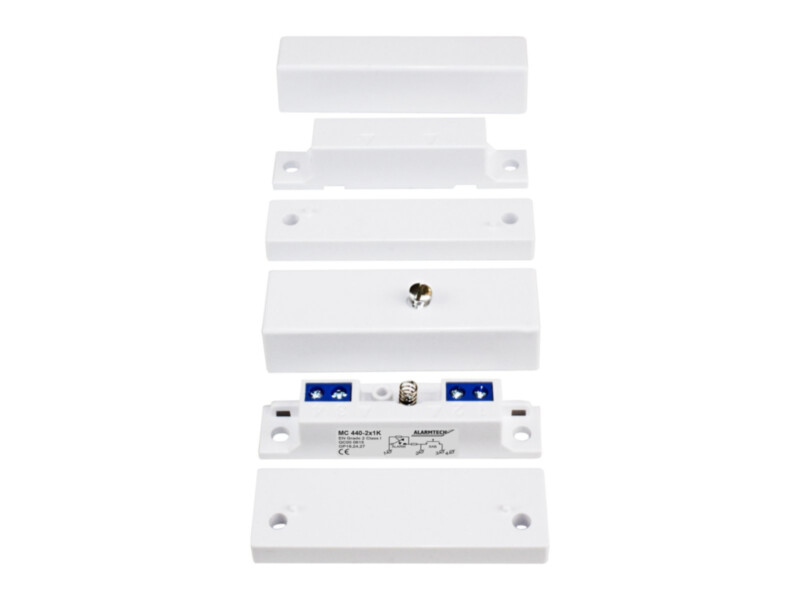

Alarmtech MC 440-2x1K magnetic contact | white | surface | G2 | resistors 2×1k

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€15.20 €19

Pre-order

SKU

6309428

Product files

Datasheet

Product details

Product parameters
IP kaitseaste	IP43
Turvakategooria	Grade 2
Sobib terasustele	Yes
Paigaldusviis	Surface mount

Toote kirjeldus

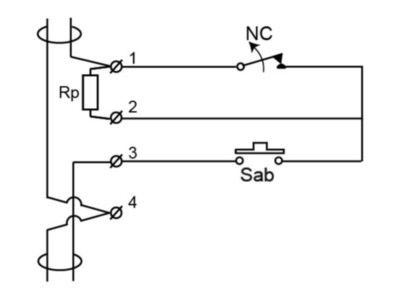

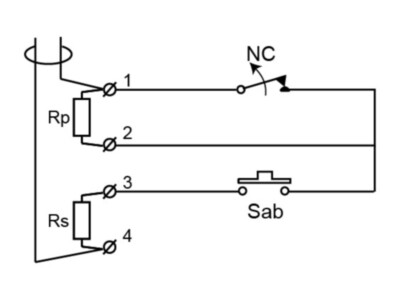

Alarmtech MC 440 with built-in resistors is the MC 440 surface-mount contact with two loop resistors inside. When installing, you choose whether to use one or both resistors, as shown on the wiring diagram – no separate resistors are needed in the junction box.

Screw terminals with wire protection, a tamper switch and a wide gap (37 mm on wood, 24 mm on steel) make it suitable for most materials. Plastic spacers for steel are included. Approved to EN 50131-2-6 Grade 2.

Features

Two built-in loop resistors
Surface mount, screw terminals, tamper switch
Make distance 37 mm on wood, 24 mm on steel
EN 50131-2-6 Grade 2
IP43

Technical data

Approvals	Class 2, class II, EN 50131-2-6 Grade 2, FG, INCERT B-582-1003, NF&A2P, SBSC 9-210
Contact rating	48 VDC / 400 mA / 10 VA
Operating temperature	+5°C – +40°C
Housing protection class	IP 43
Make distance (wood), mm	37
Make distance (steel), mm	24
Contact dimensions (L x W x H), mm	65 x 20 x 15
Magnet dimensions (L x W x H), mm	65 x 15 x 14
Normal operation	12 VDC
Grade	Grade 2
Built-in resistors	2 × 1 kΩ
