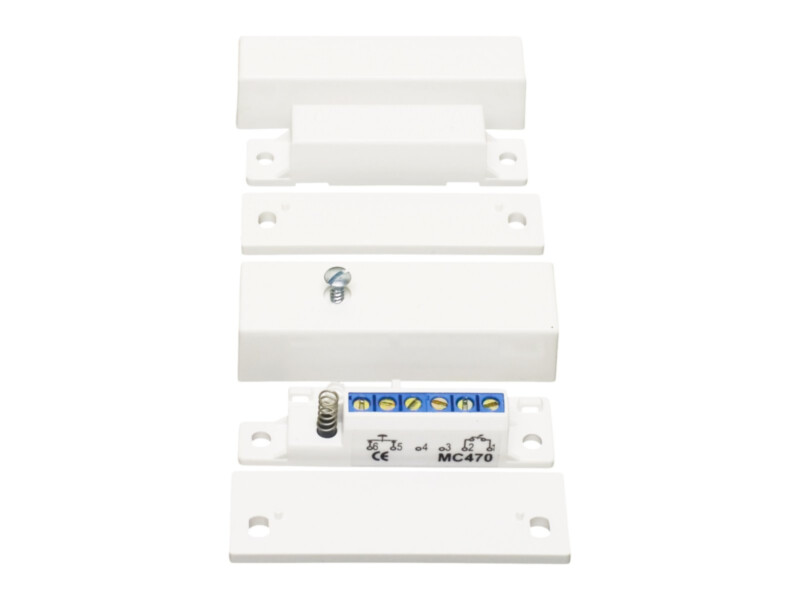

Alarmtech MC 470 magnetic contact | white | surface | IP43 | G3

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€30.80 €38

In stock 14

SKU

6332819

Product files

Datasheet

Product details

Product parameters
Length	60
Width	20
Height	15
IP kaitseaste	IP43
Turvakategooria	Grade 3
Sobib terasustele	Yes
Paigaldusviis	Surface mount

Toote kirjeldus

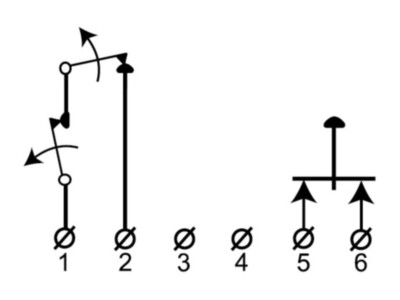

Alarmtech MC 470 is a Grade 3 surface-mount contact for banks, museums, galleries, shops and other high-risk sites. The NC contact has six screw terminals with wire protection and a tamper contact.

Plastic spacers for installation on steel are included, and brackets and extra strong magnets are available. Approved to EN 50131-2-6 Grade 3, NF&A2P and INCERT.

Features

EN 50131-2-6 Grade 3
Surface mount, 6 screw terminals, tamper contact
Make distance 27 mm on wood, 10 mm on steel
Plastic spacers for steel included
IP43

Technical data

Approvals	Class 3/4,F&P, class II, CNPP 2134030003C0, EN 50131-2-6 Grade 3, FG, GRADE 3 + RTC, INCERT B-582-1003, NBÚ CZ Typ 3, NBÚ SK Typ 3, NF&A2P, SBSC 9-201
Contact rating	48 VDC / 500 mA / 10 VA
Operating temperature	-40°C – +70°C
Housing protection class	IP 43
Make distance (wood), mm	27
Make distance (steel), mm	10
Contact dimensions (L x W x H), mm	65 x 20 x 15
Magnet dimensions (L x W x H), mm	65 x 14 x 10
Normal operation	12 VDC
Grade	Grade 3
