Alarmtech MC 740-E-BLA magnetic contact | black | slim surface | NC | IP67 | G2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€19.80 €25

Pre-order

SKU

MC740-E-BLA

Product files

Datasheet

Product details

Product parameters
IP kaitseaste	IP67
Turvakategooria	Grade 2
Paigaldusviis	Surface mount

Toote kirjeldus

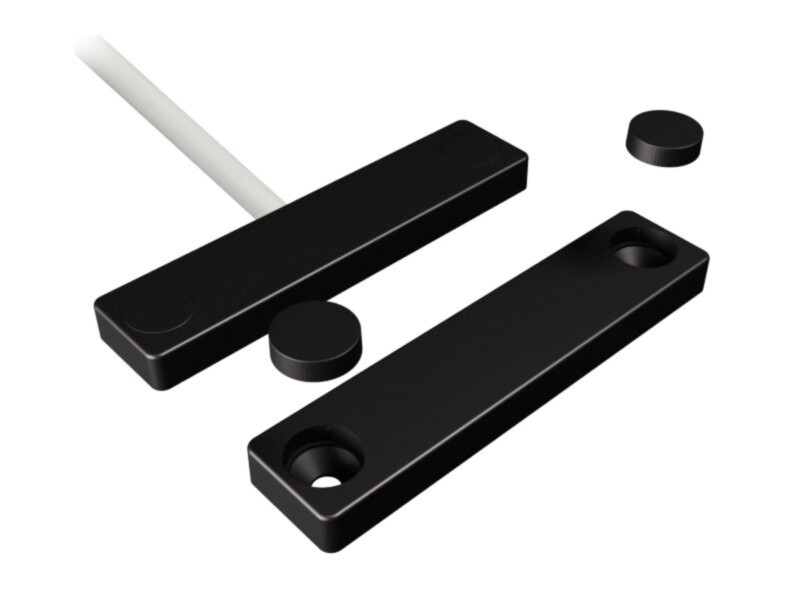

Alarmtech MC 740-E is a small, flat NC magnetic contact – contact and magnet are just 60 × 14 × 5 mm. It fits where there is little room, such as shutters, drawers, cabinets and narrow window sashes.

Both parts are in waterproof IP67 plastic housings, and lids cover the screw holes for a neat finish. The contact is approved to EN 50131-2-6 Grade 2, NF&A2P and VdS Class B.

Features

Thin surface-mount design, 60 × 14 × 5 mm
For shutters, drawers and cabinets
Lids cover the screw holes
EN 50131-2-6 Grade 2, VdS Class B
IP67, −40…+70 °C

Technical data

Cable length	2 m
Approvals	Class 1/2,F&P, class B, Class IIIA, CNPP 2124030004A0, EN 50131-2-6 Grade 2, FG, GRADE 2 + RTC, INCERT B-582-1003, NF&A2P, SBSC 9-216, VdS G 116504
Contact rating	48 VDC / 500 mA / 10 VA
Operating temperature	-40°C – +70°C
Housing protection class	IP 67
Make distance (wood), mm	37
Make distance (steel), mm	–
Contact dimensions (L x W x H), mm	60 x 14 x 5
Magnet dimensions (L x W x H), mm	60 x 14 x 5
Grade	Grade 2
