Alarmtech MC Bracket Kit for magnetic contacts on overhead doors

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€68.20 €85

In stock 9

SKU

6310729

Product files

Datasheet

Product details

Product parameters
Paigaldusviis	Flush mount

Toote kirjeldus

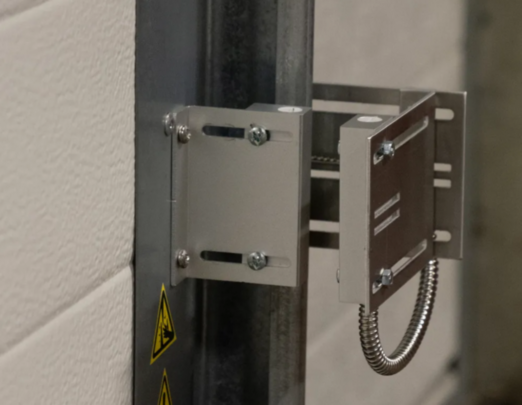

Alarmtech MC Bracket Kit makes it easier to mount magnetic contacts on industrial overhead doors. Instead of placing the contact on the floor, where it is easily damaged, the kit lets you install it at the side of the door – for example about 50 cm above the floor next to the roller guide – away from the locking mechanism.

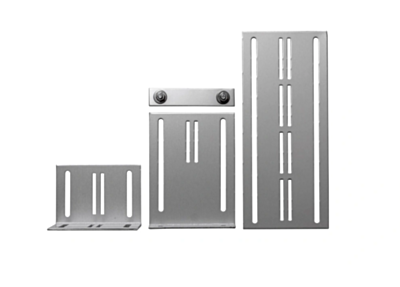

The kit contains three aluminium mounting brackets and a locking unit. It fits MC 240-S45/S48/S78, MC 270-S45/S48/S78, the aluminium accessories of the MC 200 series and the MC L and MC Z brackets.

Features

Three aluminium brackets and a locking unit
Contact mounted beside the door, not on the floor
Fits MC 240/270-S45, S48, S78 sets
Also fits MC L and MC Z brackets

Technical data

Dimensions (L x W)	Part 1, 73 x 52 mm and 73 x 52 mm, uniform angle plate, Part 2, 73 x 170 mm, straight plate, Part 3, 73 x 100 mm and 73 x 15 mm, angled plate with attachment holes, Part 4, 73 x 15 mm, lock unit
Material	Aluminium
