AMC dual technology curtain detector | white | PIR + 10 GHz microwave | 2–3.5 m | G2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€25.00 €31

In stock 1

SKU

DT16

Product files

Datasheet

Product details

Product parameters
Manufacturer	AMC
Turvakategooria	Grade 2
Vaateväli	0-15m
Anti-masking	No
Kahesüsteemne	Yes
Sobib välipaigalduseks	No
Loomakindel	No

Toote kirjeldus

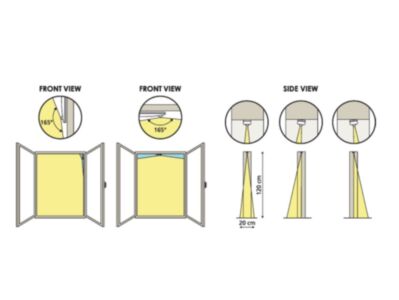

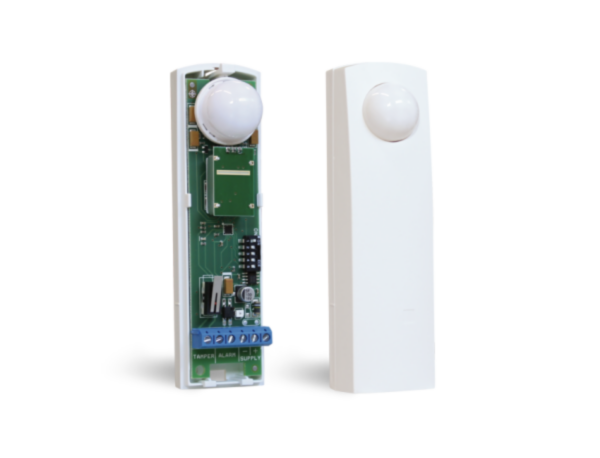

DT 16 is a dual technology detector (infrared and 10 GHz microwave) that creates a protective 'curtain' for doors and windows. The range is adjustable between 2 and 3.5 m. It has back and anti-opening tamper, a signalling LED that can be disabled with a dip switch, and alarm direction recognition.

Key features

Infrared + 10 GHz microwave
Curtain coverage, 165°
Range 2…3.5 m

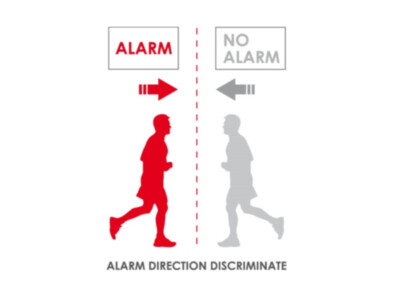

Alarm direction recognition
Temperature compensation
EN 50131-2-4 Grade 2

Technical data

Type	dual technology curtain detector (PIR + microwave)
Standard	EN 50131-2-4, Grade 2
Microwave frequency	10 GHz
Range	2…3.5 m (adjustable)
Angle	165°
Alarm time	4 s
RFI protection	30 V/m
Operating voltage	10…15 V DC
Current consumption	18 mA stand-by
Tamper	anti-opening and back tamper
Material	ABS
Protection rating	IP54
Operating temperature	−25…+55 °C
Colour	white
Dimensions	37 × 130 × 37 mm
