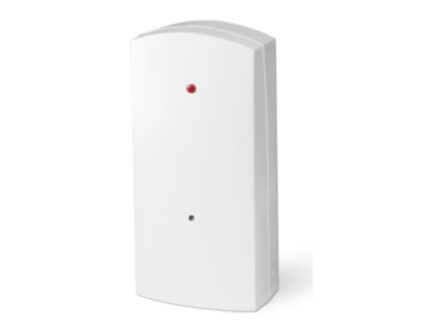

AMC glass break detector | white | microphone | 8 m range

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€18.33 €23

In stock 90

SKU

GS1

Product files

Datasheet

Product details

Product parameters
Manufacturer	AMC

Toote kirjeldus

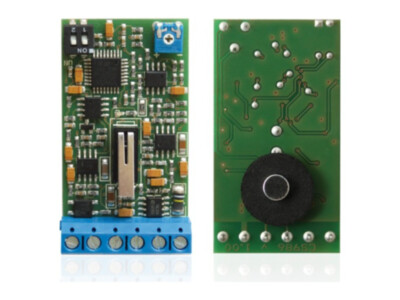

GS 1 is a microphone glass break detector that distinguishes the different frequencies produced when glass breaks. Its useful range is about 8 m and it can be installed in any position in the protected room without affecting its operation. Signal analysis is digital, and the detector has an anti-opening tamper. Conforms to EN 50131.

Key features

Microphone, range approx. 8 m
Distinguishes glass breaking frequencies
Any mounting position
Digital analysis
Anti-opening tamper
Conforms to EN 50131

Technical data

Type	microphone glass break detector
Range	approx. 8 m
Current consumption	15 mA
Operating voltage	13.8 V DC
Alarm time	2 s
Tamper	anti-opening tamper
RFI protection	30 V/m
Material	ABS
Operating temperature	−10…+40 °C
Colour	white
Dimensions	78 × 37 × 21 mm
Standard	conforms to EN 50131
