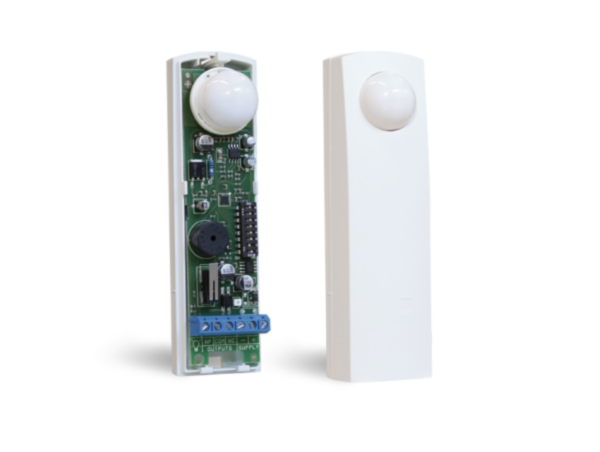

AMC PIR curtain detector | white | LED light and buzzer | 2–3.5 m | G2

IF 16/L is a passive infrared detector that creates a protective 'curtain' for doors and windows. The range is adjustable between 2 and 3.5 m. It has back and anti-opening tamper and a signalling LED that can be disabled with a dip switch. Special features: a high-output LED for lighting and/or alarm, alarm direction recognition, a buzzer with different sounds depending on the direction of movement (entrance/exit) and programmable alarm delay.

Key features

• PIR curtain coverage, 165°
• Range 2…3.5 m
• Alarm direction recognition
• Buzzer with direction-dependent sounds
• High-power LED for lighting / alarm
• Programmable alarm delay
• EN 50131-2-2 Grade 2
