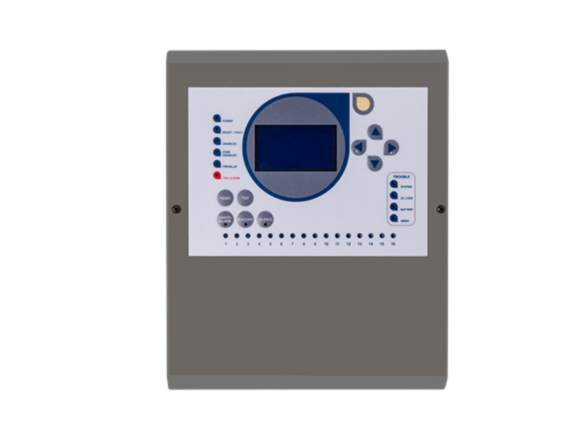

CodeSec repeater panel | for AA504 panels | graphic LCD, 16 zone LEDs, RS485

The AA45R is a Kod Elektronik CodeSec repeater panel with which the same addressable fire system can be monitored and controlled from two places, for example a reception desk and a technical room. It works with all functions of the control panel one to one, and has a 120 × 64 pixel graphic LCD and 16 zone LEDs. It connects directly via RS485, with no extra card needed. One repeater panel can be connected to each AA504 series panel, and it can only be used in non-networked systems. Metal housing, 255 × 325 × 30 mm.

Key features

• All panel functions from a second location
• 120 × 64 graphic LCD, 16 zone LEDs
• RS485, no extra card needed
• 1 panel per AA504, non-networked systems
• Metal housing

Technical data
