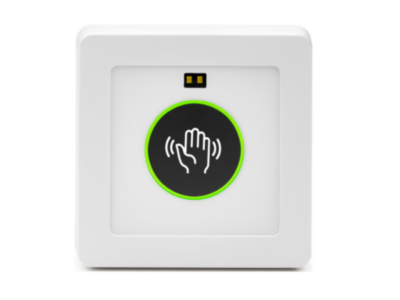

Conlan WAVE XS touchless exit button | white | Danish model, 12–24 V DC, IP65

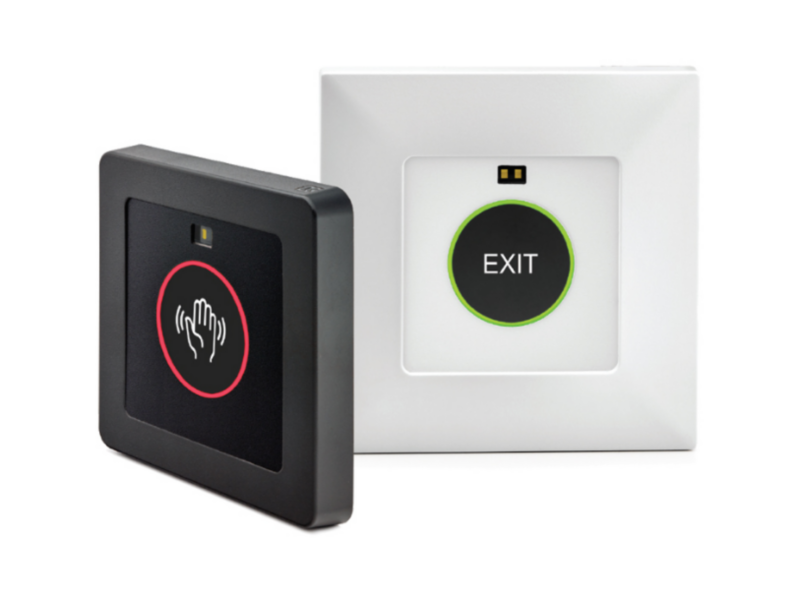

The Conlan WAVE XS is a touchless button activated by a wave of the hand – the button need not be touched, which matters especially in public areas such as hospitals and restaurants where hygiene is important. It can be used as an exit button to open a door, but also to switch on the light, call a lift and for other tasks. The infrared detection range can be set between 1 and 25 cm and the activation time to 3, 5, 10, 15 or 20 seconds or toggle mode. The button has a two-colour status ring (red and green by default) and a display that shows a text or icon chosen with DIP switches: the word EXIT in eight languages (incl. UD, UT, AUSGANG) or one of six icons (lock, hand, arrow up, arrow down, door); a picture or symbol of your own can also be uploaded with PC software. Supply 12–24 V DC, open-collector output 500 mA, connection with a 2.5 m 8-core cable. IP65 rating – suitable for indoor and outdoor use. A white frame and front label are included; the button must be mounted on an even surface with the supplied mounting frame. Danish model dimensions with frame 63 × 63 × 10 mm.

Key features

• Touchless – activated by a wave of the hand
• Range 1–25 cm, activation time 3–20 s or toggle mode

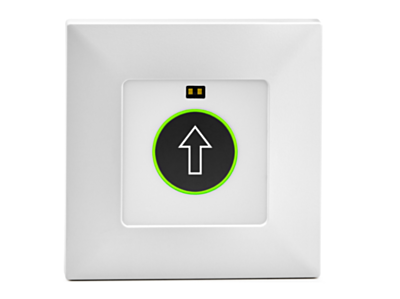

• Display: EXIT in 8 languages, 6 icons or own picture (software)
• Two-colour status ring
• 12–24 V DC, open collector 500 mA
• IP65, -20 … +70 °C
• Frame and front label (white) included
