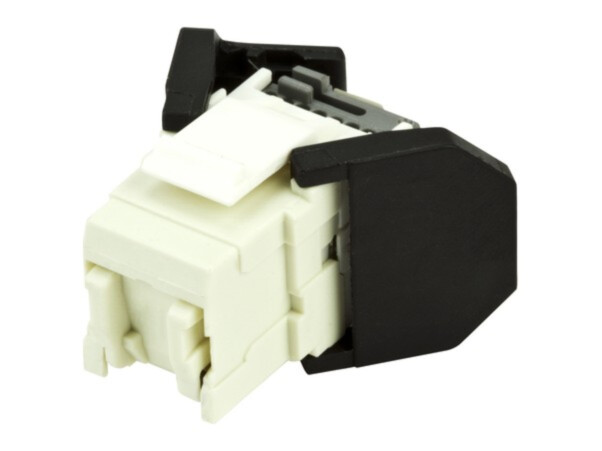

Corning Everon E250U RJ45 jack | white | Cat6, unshielded, tool-less
€3.60
€4
Pre-order
SKU
FQ100031241
Product files
Product details
| Manufacturer | Corning |
|---|
Toote kirjeldus
The Corning Everon Copper Datacom E250U is a Cat6 RJ45 jack (8/8) for unshielded twisted-pair cable. Conductors are terminated in one tool-less operation with no untwisting of pairs and minimal stripping length; two cable entry points reduce cable bending and help in tight spaces. The jack can be reused after a wiring mistake, accepts solid and stranded conductors (26–22 AWG), and its integral shutter makes a separate dust cover unnecessary. Supports PoE and PoE+ (IEEE 802.3at) and meets ISO/IEC 11801, EN 50173-1 and ANSI/TIA-568-C.2.
Key features
- Cat6, RJ45 8/8, unshielded (UTP)
- Tool-less termination, two cable entry points
- Reusable, solid and stranded conductors 26–22 AWG
- Integral shutter
- PoE / PoE+ (IEEE 802.3at)
Technical data
| Type | RJ45 jack (module), Cat6, unshielded |
|---|---|
| Compliance | ISO/IEC 11801 Ed. 2, EN 50173-1:2011, ANSI/TIA/EIA-568-C.2, IEEE 802.3 1000BASE-T, IEEE 802.3at, RoHS |
| Conductors | 26–22 AWG, solid and stranded; insulation Ø up to 1.6 mm |
| Contacts | gold plated, 1.6 µm |
| Material | plastic |
| Colour | white |
| Dimensions | 23 × 18 × 34 mm (H × W × D) |
| Manufacturer code | FQ100031241 (E250U, OCK6UV) |
