CQR BZ27 buzzer | round | 75 dB | 3–24 V DC | 14 × Ø32 mm

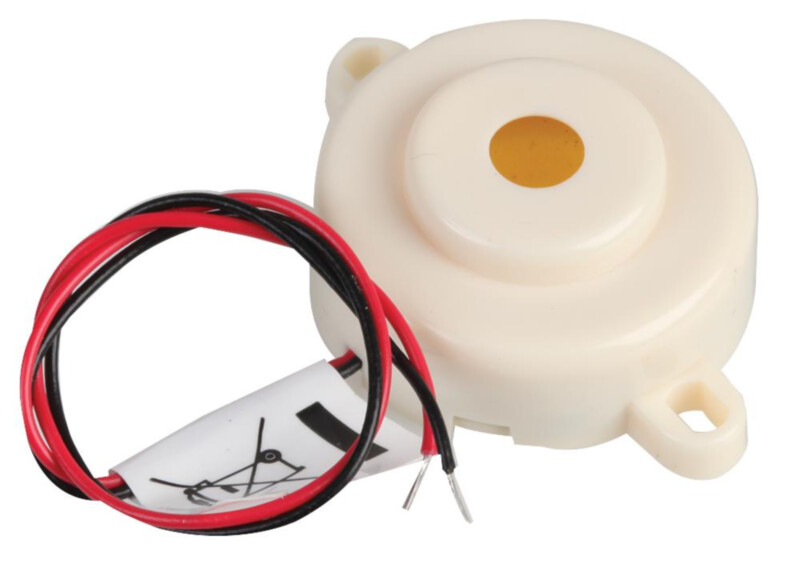

The CQR BZ27/LS is a miniature buzzer suitable for many signalling applications – for example as an internal buzzer in alarm systems or as an equipment warning signal. It produces 75 dB(A) at 1 m at a frequency of 2.6 kHz. The supply voltage is 3–24 V DC and the current draw only 12 mA. The housing is ABS, size 14 × Ø32 mm.

Key features

• 75 dB(A) at 1 m
• 3–24 V DC supply, 12 mA
• Frequency 2.6 kHz
• ABS housing, 14 × Ø32 mm

Technical data
