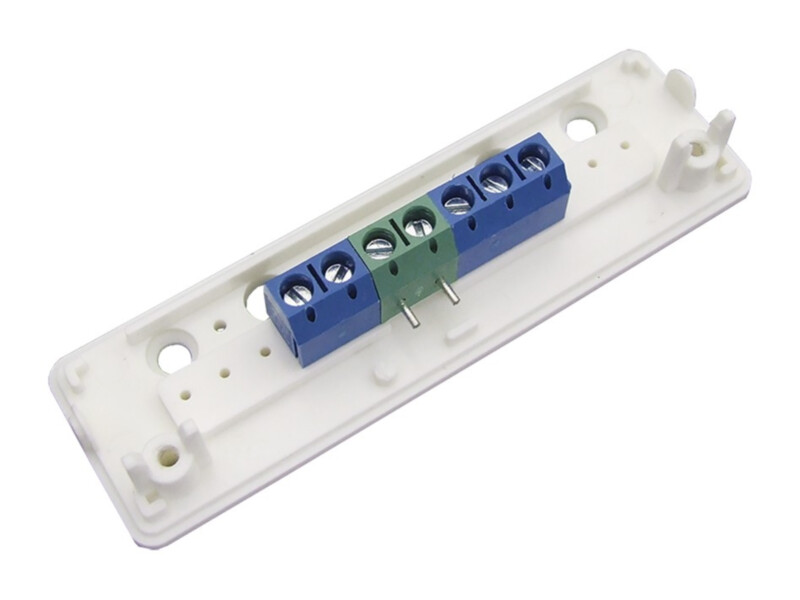

CQR JB701 junction box | white | 5 terminals + 2 tamper terminals | G3

The CQR JB701 is a small junction box for joining and extending alarm system cables. It has 5 screw terminals and two terminals for the lid tamper switch, which signals when the box is opened; all other terminals are electrically isolated. Cable can enter from either end through snap-out sections or directly from behind. The terminals take 22–14 AWG wire (up to 1.5 mm²) and have stainless steel wire guards. The housing is ABS. The box is for indoor use in a dry place and is not suitable for mains voltage. It suits EN 50131-1 Grade 3, environmental class II systems (PD 6662).

Key features

• Colour: white
• 5 screw terminals + 2 lid tamper terminals
• Cable entry from the ends or from behind
• Wire 22–14 AWG (up to 1.5 mm²)
• Indoor use, not for mains voltage
• EN 50131-1 Grade 3, environmental class II
