Detnov MAD-472 sounder base | addressable | 80 dB | EN 54-3

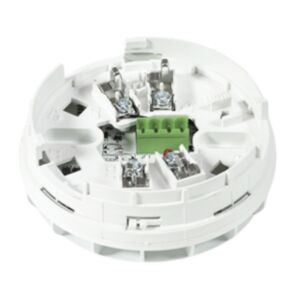

The MAD-472 is a sounder base for the Detnov addressable system, for places that need both a detector and a sounder at the same point – it shortens installation time. Any Detnov 200A series addressable detector fits on the base. The sounder takes one loop address, set with the programmer; it is loop powered and wired with two wires without polarity. Sound level 80 dB(A) at 1 m. Up to 30 sounders on a 1 km loop and up to 15 on a 2 km loop (check with Detnov's system calculator). Indoor use, IP21C; certified to EN 54-3 (0370-CPR-2665).

Key features

• Detector and sounder at one point
• 80 dB(A) at 1 m
• Loop powered, non-polarised
• 1 loop address
• EN 54-3

Technical data
