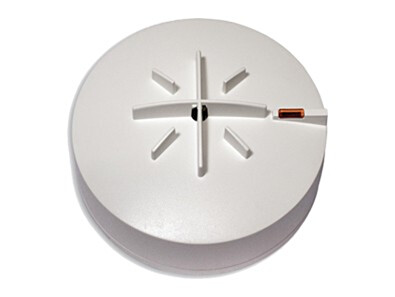

Detnov DTD-210A heat detector | 58 °C + rate of rise | addressable | EN 54-5

The DTD-210A is a Detnov 200A series addressable heat detector (58 °C fixed and rate of rise) for Detnov CAD-150 and CAD-250 series addressable control panels. The thermistor-based detector goes into alarm when the temperature rises quickly within a set time or exceeds 58 °C. An alarm verification algorithm reduces false alarms. The detector takes one loop address from 1 to 250; the address is set with the PGD-300 programmer. The detector is wired to the loop with two wires without polarity. It is mounted on a Z-200 (or Z-200-H) base; the Z-200 locking option prevents unauthorised removal. LED status indicator and output for a PAD-10 remote indicator or a BUD-200 buzzer. White; certified to EN 54-5 (0370-CPR-0995).

Key features

• 58 °C fixed and rate of rise
• Addressable, addresses 1–250
• Two-wire, non-polarised
• LED + remote indicator / BUD-200 output
• Z-200 base (with locking)
• EN 54-5

Technical data
