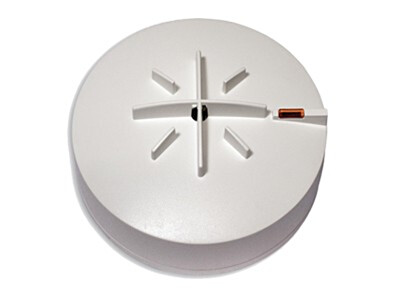

Detnov DTD-210A-I heat detector | 58 °C + rate of rise | addressable | with isolator | EN 54-5 / EN 54-17

The DTD-210A-I is a Detnov 200A series addressable heat detector (58 °C fixed and rate of rise) for Detnov CAD-150 and CAD-250 series addressable control panels. The thermistor-based detector goes into alarm when the temperature rises quickly within a set time or exceeds 58 °C. An alarm verification algorithm reduces false alarms. The detector takes one loop address from 1 to 250; the address is set with the PGD-300 programmer or by the panel's auto-addressing. The built-in short-circuit isolator separates a shorted loop section; observe polarity when wiring. It is mounted on a Z-200 (or Z-200-H) base; the Z-200 locking option prevents unauthorised removal. LED status indicator and output for a PAD-10 remote indicator or a BUD-200 buzzer. White; certified to EN 54-5 / EN 54-17 (0370-CPR-1860).

Key features

• 58 °C fixed and rate of rise
• Addressable, addresses 1–250
• Built-in isolator
• LED + remote indicator / BUD-200 output
• Z-200 base (with locking)
• EN 54-5 / EN 54-17
