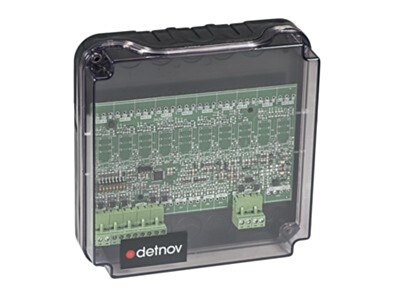

Detnov MAD-405-I input module | addressable | 5 inputs | with isolator | EN 54-18 / EN 54-17

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€113.95 €141

Pre-order

SKU

MAD-405-I

Product files

Datasheet

Product details

Product parameters
Manufacturer	Detnov

Toote kirjeldus

The MAD-405-I is a Detnov MAD-400 series addressable input module with 5 supervised technical inputs for monitoring equipment with an NC or NO contact; the input type and supervision are set with a micro-switch. for Detnov addressable control panels. It takes 5 loop addresses; the address is set with the PGD-300 programmer. Built-in short-circuit isolator; observe polarity when wiring, the address can also be set by the panel's auto-addressing. Powered directly from the loop. LED status indicator. The module is supplied in a mounting box. Removable terminal blocks for wires up to 2.5 mm². Red; certified to EN 54-18 / EN 54-17 (0370-CPR-3151).

Key features

5 inputs
Built-in isolator
5 loop address(es)
Loop powered
EN 54-18 / EN 54-17

Technical data

Type	addressable input module with 5 supervised technical inputs for monitoring equipment with an NC or NO contact; the input type and supervision are set with a micro-switch., with isolator
Input	5 × NC/NO, supervision selectable
Addresses	5
Supply voltage	22 … 38 V DC
Standby current	< 300 µA
Alarm current	< 3 mA
Wiring	2 × 1.5 mm² twisted shielded cable
Operating temperature	-10 … +70 °C
Humidity	95 % (non-condensing)
Protection	IP40
Dimensions	172 × 170 × 48 mm (with box)
Material	ABS
Mounting	in mounting box
Approval	EN 54-18 / EN 54-17, 0370-CPR-3151
