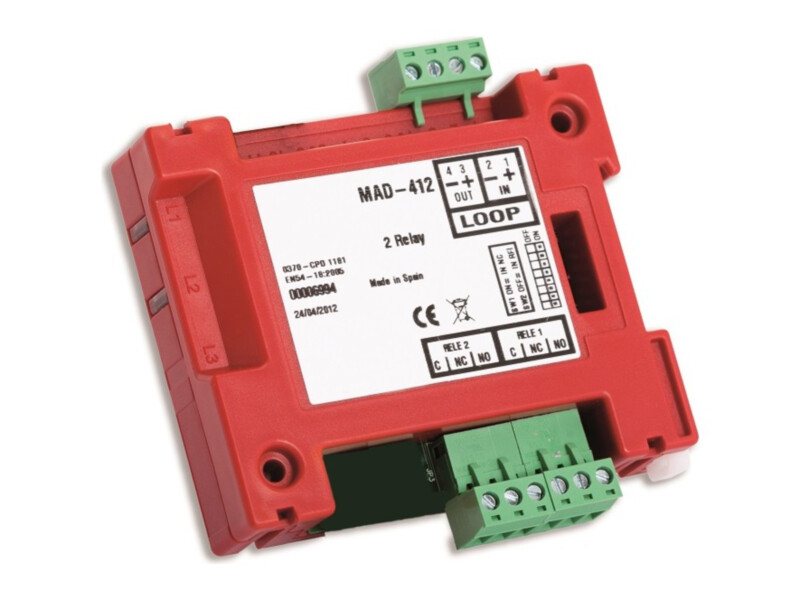

Detnov MAD-412-I relay module | addressable | 2 relays | with isolator | EN 54-18 / EN 54-17

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€90.29 €112

Pre-order

SKU

MAD-412-I

Product files

Datasheet

Product details

Product parameters
Manufacturer	Detnov

Toote kirjeldus

The MAD-412-I is a Detnov MAD-400 series addressable relay module with 2 independent voltage-free relay outputs (C/NO/NC) for switching external equipment, e.g. ventilation or lift control. for Detnov addressable control panels. It takes 2 loop addresses; the address is set with the PGD-300 programmer. Built-in short-circuit isolator; observe polarity when wiring, the address can also be set by the panel's auto-addressing. Powered directly from the loop. LED status indicator. Mounting on a DIN rail or on the wall in a BOX-ONE box (up to 6 modules in a BOX-SIX); removable terminal blocks for wires up to 2.5 mm². Red; certified to EN 54-18 / EN 54-17 (0370-CPR-1863).

Key features

2 relays, voltage-free C/NO/NC
Built-in isolator
2 loop address(es)
Loop powered
EN 54-18 / EN 54-17

Technical data

Type	addressable relay module with 2 independent voltage-free relay outputs (C/NO/NC) for switching external equipment, e.g. ventilation or lift control., with isolator
Outputs	2 relays, voltage-free
Contacts	C/NO/NC, 1 A @ 30 V DC
Addresses	2
Supply voltage	22 … 38 V DC
Standby current	< 300 µA
Alarm current	< 3 mA
Wiring	2 × 1.5 mm² twisted shielded cable
Operating temperature	-10 … +70 °C
Humidity	95 % (non-condensing)
Protection	IP40
Dimensions	100 × 82 × 23 mm
Material	ABS
Mounting	DIN rail or BOX-ONE / BOX-SIX box
Approval	EN 54-18 / EN 54-17, 0370-CPR-1863
