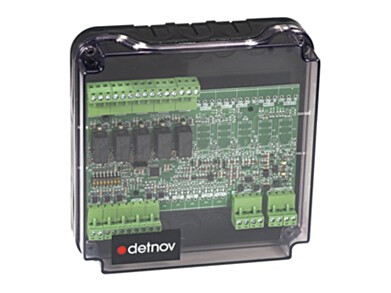

Detnov MAD-425-I input/output module | addressable | 5 inputs + 5 relays | with isolator | EN 54-18 / EN 54-17

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€182.00 €226

Pre-order

SKU

MAD-425-I

Product files

Datasheet

Product details

Product parameters
Manufacturer	Detnov

Toote kirjeldus

The MAD-425-I is a Detnov MAD-400 series addressable input/output module with 5 supervised technical inputs (NC/NO) and 5 voltage-free relay outputs (C/NO/NC); each input and output can be assigned its own control action. for Detnov addressable control panels. It takes 10 loop addresses; the address is set with the PGD-300 programmer. Built-in short-circuit isolator; observe polarity when wiring, the address can also be set by the panel's auto-addressing. The module needs a 24 V DC auxiliary supply. LED status indicator. The module is supplied in a mounting box. Removable terminal blocks for wires up to 2.5 mm². Red; certified to EN 54-18 / EN 54-17 (0370-CPR-3151).

Key features

5 inputs + 5 relays
Built-in isolator
10 loop address(es)
24 V DC auxiliary supply
EN 54-18 / EN 54-17

Technical data

Type	addressable input/output module with 5 supervised technical inputs (NC/NO) and 5 voltage-free relay outputs (C/NO/NC); each input and output can be assigned its own control action., with isolator
Input	5 × NC/NO, supervision selectable
Outputs	5 × relay, voltage-free
Contacts	C/NO/NC, 1 A @ 30 V DC
Addresses	10
Supply voltage	22 … 38 V DC
Standby current	< 300 µA
Alarm current	< 3 mA
Wiring	2 × 1.5 mm² twisted shielded cable
Operating temperature	-10 … +70 °C
Humidity	95 % (non-condensing)
Protection	IP40
Dimensions	172 × 170 × 48 mm (with box)
Material	ABS
Mounting	in mounting box
Approval	EN 54-18 / EN 54-17, 0370-CPR-3151
