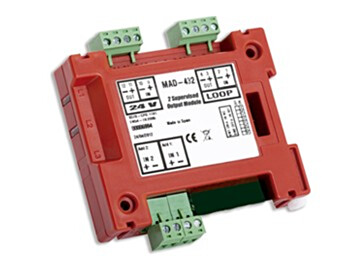

Detnov MAD-432-I sounder module | addressable | 2 supervised 24 V outputs | with isolator | EN 54-18 / EN 54-17

The MAD-432-I is a Detnov MAD-400 series addressable output module with 2 supervised 24 V outputs for driving conventional sounders and beacons or other equipment that needs 24 V; open circuit and short circuit on the line are reported separately. The output mode (supervised voltage output or sounder output) is set with a micro-switch. for Detnov addressable control panels. It takes 2 loop addresses; the address is set with the PGD-300 programmer. Built-in short-circuit isolator; observe polarity when wiring, the address can also be set by the panel's auto-addressing. The module needs a 24 V DC auxiliary supply. LED status indicator. Mounting on a DIN rail or on the wall in a BOX-ONE box (up to 6 modules in a BOX-SIX); removable terminal blocks for wires up to 2.5 mm². Red; certified to EN 54-18 / EN 54-17 (0370-CPR-1864).

Key features

• 2 supervised 24 V outputs (sounders, beacons)
• Open and short circuit detection
• Built-in isolator
• 2 loop address(es)
• 24 V DC auxiliary supply
• EN 54-18 / EN 54-17

Technical data
