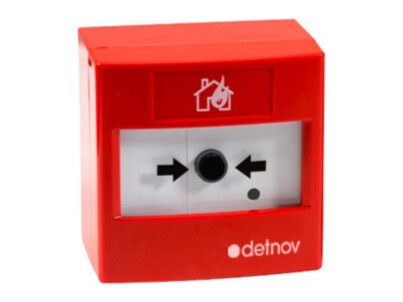

Detnov MAD-451-I manual call point | addressable | with isolator | resettable | EN 54-11 / EN 54-17

The MAD-451-I is a manual call point with a built-in short-circuit isolator for Detnov addressable control panels. It is wired to the loop with two wires (observe polarity) and takes one of the 250 addresses; the address is set with the programmer or by the panel's auto-addressing. The LED flashes whenever it communicates with the panel and stays on after an alarm. A patented mechanism gives the feel of breaking glass and a yellow-and-black indicator appears at the top of the window. The call point is reset with the key, without replacing any glass. Optional TBD-450-IW protective cover. Red, for indoor use; certified to EN 54-11 and EN 54-17 (0370-CPR-3150).

Key features

• Addressable, built-in isolator
• Resettable element, break-glass feel
• Yellow-and-black operated indicator
• LED status indicator, key included
• EN 54-11, EN 54-17

Technical data
