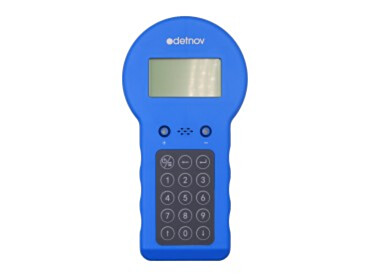

Detnov PGD-300 address programmer and loop analyser | for addressable devices

The PGD-300 is a multifunction tool for the Detnov addressable system that assigns each device an address from 1 to 250 and shows the device address, the detector's analogue value, mode, sensitivity and status. The loop menu offers auto search and auto addressing, device activation, communication quality testing and locating a device on the loop; for this the analyser is connected to the loop via its + and – terminals. It recognises devices that take several addresses and prevents duplicate addresses. 128 × 64 backlit display, automatic switch-off to save the batteries. Powered by 4 AA batteries or from an external 5 V / 1 A source via micro-USB.

Key features

• Addresses 1–250
• Device, loop and settings menus
• 128 × 64 backlit display
• 4 × AA or 5 V micro-USB
• Cables and detector base included
