Detnov TMB-251 communication card | CAD-150 | S-Network, Ethernet, Modbus

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€350.00 €434

In stock 1

SKU

TMB-251

Lõpumüügi toode, hind kehtib ainult laos olevale kogusele.

Product files

Datasheet

Product details

Product parameters
Manufacturer	Detnov

Toote kirjeldus

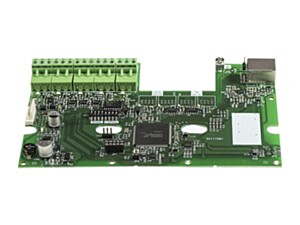

The TMB-251 is a communication card for Detnov CAD-150 series addressable control panels. It has an RS485 port for the panel and repeater network (S-Network, ring or bus, up to 32 nodes, up to 1 km between nodes), 2 RS485 ports for integration with other systems via Modbus, an Ethernet port for Detnov Cloud and Modbus IP and an RS232 port for a serial printer. Electrical isolation between nodes boosts the network signal. The card adds Modbus remote control of the panel's main functions and remote monitoring and control via Detnov Cloud; compatible with SGD-151 graphic software.

Key features

S-Network up to 32 nodes, 1 km between nodes
2 × RS485 Modbus
Ethernet: Detnov Cloud, Modbus IP
RS232 for printer
Electrical isolation between nodes

Technical data

Type	communication card
Compatible with	CAD-150 series panels
Ports	1 × RS485 (S-Network), 2 × RS485 (Modbus), 1 × Ethernet, 1 × RS232
Network	up to 32 nodes, up to 1 km between nodes, network up to 32 km
Wiring	2 × 1.5 mm² twisted shielded cable
Operating temperature	-5 … +40 °C
Humidity	95 % (non-condensing)
