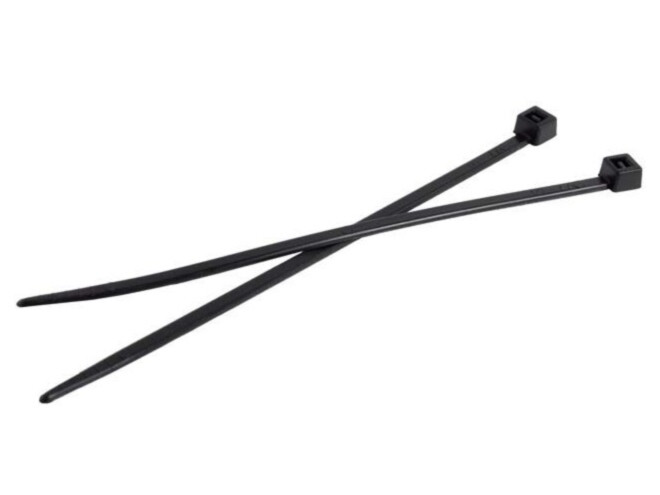

Elematic cable tie | black | 3.5 × 200 mm, UV resistant, 100 pcs

Elematic Super UV is a technical cable tie from ITW Construction Products in UV-stabilised polyamide PA 6.6, made for outdoor use – photovoltaic systems, external installations and industrial wiring. The ties passed the UV resistance test to CEI EN 62275 and kept 100% of the declared tensile strength after 1000 hours under a xenon arc lamp (ISO 4892-2, method A – according to the maker about 10 years of southern European solar radiation). The tie is 3.5 mm wide and 200 mm long, fits bundles up to 50 mm in diameter, tensile strength 130 N. The material is halogen free, rated UL 94 V-2, and resists aromatic solvents, oils and greases well. Installation at -10 … +60 °C, working temperature -40 … +85 °C. CE marked (Low Voltage Directive 2014/35/EU), IEC 62275; UL, DNV and Bureau Veritas type approvals. 100 pcs per bag.

Key features

• 3.5 × 200 mm, bundle up to Ø 50 mm
• Tensile strength 130 N
• UV resistant: 1000 h xenon test, 100% strength kept
• UV-stabilised PA 6.6, halogen free, UL 94 V-2
• Working temperature -40 … +85 °C
• 100 pcs per bag

Technical data
