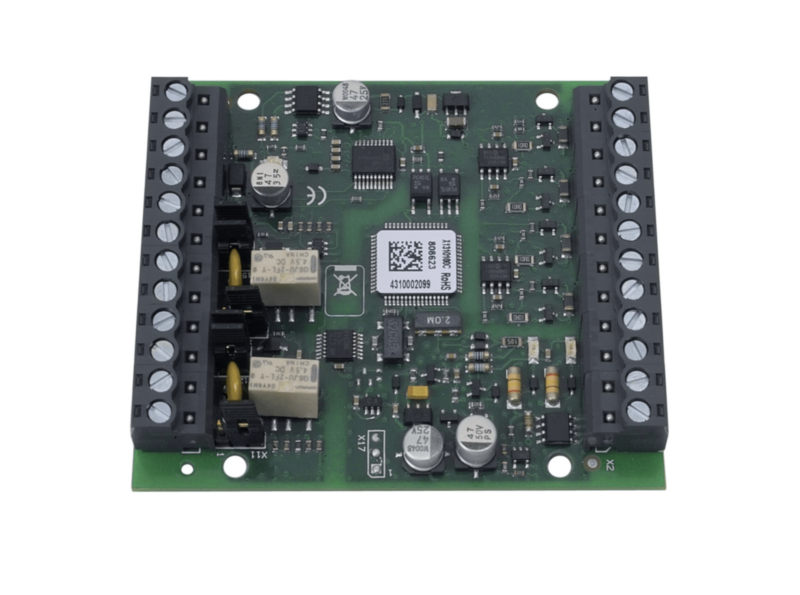

Esser esserbus alarm transponder, 4 IN / 2 OUT, with isolator

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€313.00 €388

In stock 116

SKU

808623

Product files

Datasheet

Toote kirjeldus

The transponder is an esserbus loop device for connecting four zones of conventional detectors, non-addressable call points and special detectors. The two relay outputs are programmable and can also reset a connected third-party detector. The transponder needs only one loop address.

Key features

4 zone inputs, 2 programmable relay outputs
Only one loop address
Built-in loop isolator
Line monitoring to EN 54-13
EN 54-17

Technical data

Operating voltage	10 … 28 V DC
Quiescent current	approx. 12 mA
Current consumption	max. 120 mA @ 12 V DC
Standard	EN 54-17 : 2005
Contact rating	30 V DC / 1 A
Protection rating	IP 40 (in housing), IP55 (with high IP housing)
Operating temperature	-10 °C … 50 °C
Storage temperature	-25 °C … 75 °C
Humidity	< 95 % (non-condensing)
Dimensions	82 × 72 × 20 mm (W × H × D)
Weight	approx. 28 g
