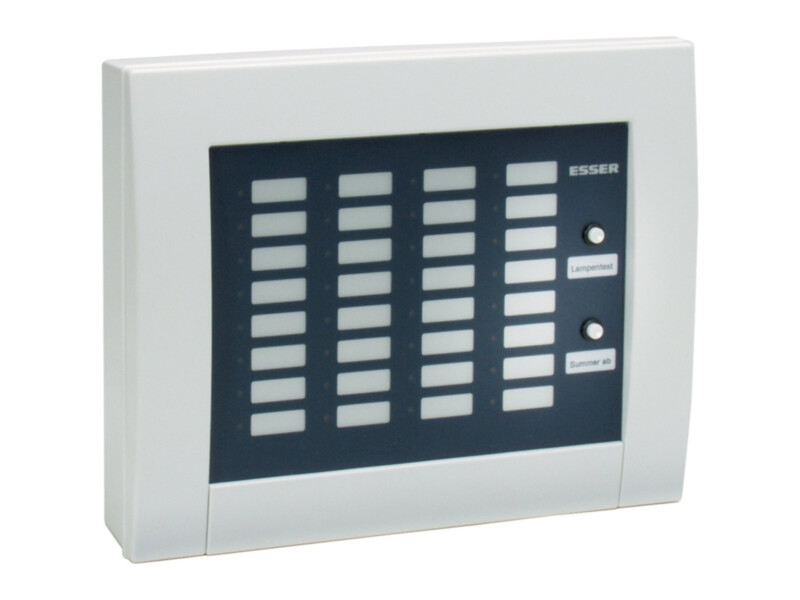

Esser esserbus LED remote indicator panel, 32 messages

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€885.00 €1,097

Pre-order

SKU

804791

Product files

Datasheet

Toote kirjeldus

Remote indicator panel with 32 red LEDs and buzzer and a built-in esserbus transponder. It connects directly to the esserbus or powered loop of 8000, IQ8Control or FlexES Control systems and shows up to 32 messages, e.g. zone alarms. Loop isolator (788612) is ordered separately. The panel is not suitable as the initial warning device for the fire brigade.

Key features

32 LED indications and buzzer
Built-in esserbus transponder
Isolator 788612 ordered separately

Technical data

Operating voltage	10 … 15 V DC
Quiescent current	approx. 1 mA
Alarm current	approx. 380 mA (incl. 32 LED & buzzer)
Display	32 LED, red
Terminals	1.5 mm²
Protection rating	IP 40
Operating temperature	-5 °C … 50 °C
Storage temperature	-25 °C … 75 °C
Humidity	< 95 % (non-condensing)
Material	ABS plastic
Colour	white (similar to RAL 9003), front blue (similar to RAL 5003)
Dimensions	270 × 221 × 71 mm (W × H × D)
Weight	approx. 1000 g
