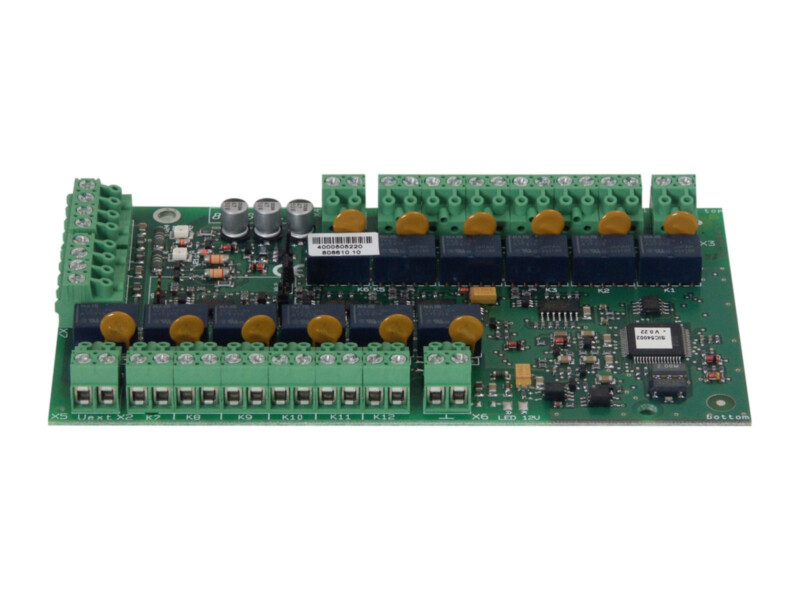

Esser esserbus transponder, 12 relays

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€450.00 €558

In stock 8

SKU

808610.10

Product files

Datasheet

Toote kirjeldus

The transponder is an esserbus loop device whose 12 relays extend the number of control groups of the panel. An external power supply is optional. An isolator can be added with board 788612.

Key features

12 relay outputs
Only one loop address
Up to 32 transponders per loop, 100 per panel
Works on loop power, external supply optional
Isolator can be added (788612)

Technical data

Operating voltage	10 … 28 V DC
Quiescent current	approx. 250 µA
Current consumption	approx. 3 mA
Contact rating	30 V DC / 1 A (max. 3 A each transponder)
Protection rating	IP 40 (with housing)
Operating temperature	-10 °C … 50 °C
Storage temperature	-25 °C … 75 °C
Humidity	< 95 % (non-condensing)
Dimensions	150 × 82 × 20 mm (W × H × D)
Weight	approx. 110 g
