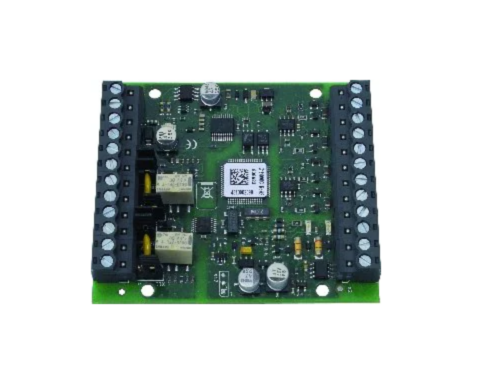

Esser esserbus transponder for UniVario detectors, with isolator

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€300.00 €372

Pre-order

SKU

808623.10

Product files

Datasheet

Toote kirjeldus

The interface connects up to two UniVario industrial detectors, which are supplied via the 9 V DC group voltage input. For standard-compliant monitoring an EOL-UV terminal element is connected in the UniVario detector base. The transponder needs an external power supply.

Key features

Up to 2 UniVario detectors
Only one loop address
Built-in loop isolator
Programmable relay outputs
Needs external power

Technical data

Operating voltage	10 … 28 V DC
Quiescent current	approx. 12 mA
Current consumption	max. 120 mA @ 12 V DC
Standard	EN 54-17 : 2005
Contact rating	30 V DC / 1 A
Protection rating	IP40 (with housing), IP55 (with high IP housing)
Operating temperature	-10 °C … 50 °C
Storage temperature	-25 °C … 75 °C
Humidity	< 95 % (non-condensing)
Dimensions	82 × 72 × 20 mm (W × H × D)
Weight	approx. 28 g
