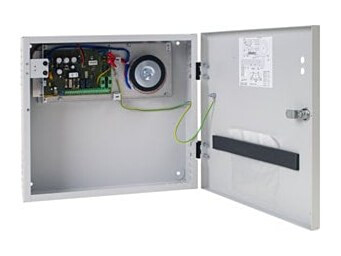

Esser external power supply 24 V DC / 3 A for 17 Ah batteries, EN 54-4

Skip to the beginning of the images gallery

€985.00 €1,221

Pre-order

SKU

960001.10.GB

Toote kirjeldus

External power supply for fire alarm equipment to EN 54-4. It charges the batteries with temperature compensation, monitors the battery, output fuses, rectifier operation and internal temperature, and indicates faults both locally and remotely. Batteries are ordered separately.

Key features

24 V DC, max. 3 A
Batteries up to 17 Ah
Charging with temperature compensation
Electronic low-voltage battery disconnect
Battery, fuse and rectifier monitoring
Remote fault indication

Technical data

Rated voltage	230
Output voltage	24 V DC
Output current	2 A
Batteries	max. 17 Ah
Efficiency	> 80 %
Protection rating	IP44
Operating temperature	-25 °C … 55 °C
Dimensions	390 × 350 × 90 mm (W × H × D)
Weight	approx. 18 kg (incl. batteries)
