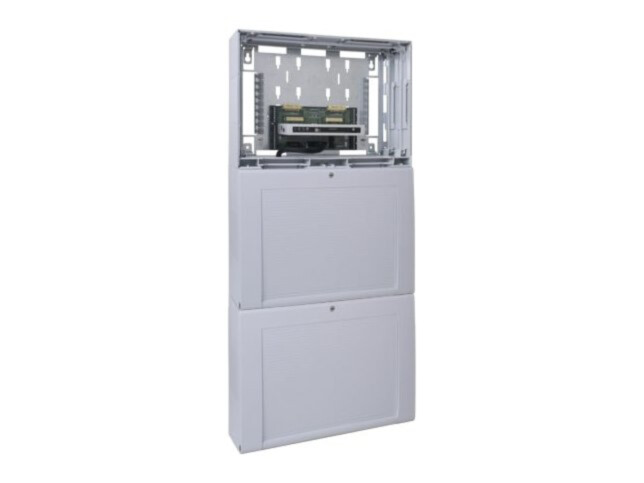

Esser FlexES Control FX10 fire alarm panel, 10 loops, for 2x24 Ah batteries

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€3,458.00 €4,288

Pre-order

SKU

FX808394

Product files

Datasheet

Toote kirjeldus

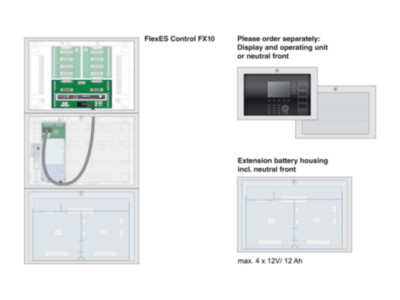

FlexES Control FX10 basic configuration with software support for 10 loops and up to 1,270 digital loop addresses. It can be expanded up to 18 loops by exchanging the CPU licence and the back plane. The redundant control module and the loop modules' emergency mode ensure reliability.

Key features

10 loops, up to 1,270 addresses
Expandable to 18 loops
Master/slave CPU, redundant control module
4 programmable outputs and an output for the alarm transmission unit
230 V AC, 24 V DC output, 2x24 Ah batteries

Technical data

Quiescent current	approx. 192 mA (base model w/o display and operating unit) approx. 348 mA (base model with display and operating unit)
Rated current	0.8 A
Rated voltage	230 V AC
Frequency	50 … 60 Hz
Output voltage	24 V DC
Current for external devices	3 A
Batteries	4 x 12 V / 26 Ah
Protection rating	IP 30
Operating temperature	5 °C … 45 °C
Storage temperature	-10°C … 50°C
Humidity	< 95 % (non-condensing)
Material	ABS, 10% glass fiber reinforced, V - 0
Colour	gray, similar to Pantone 538
Dimensions	450 × 960 × 185 mm (W × H × D)
Weight	approx. 15.1 kg (incl. neutral front) approx. 17 kg (incl. operating unit)
