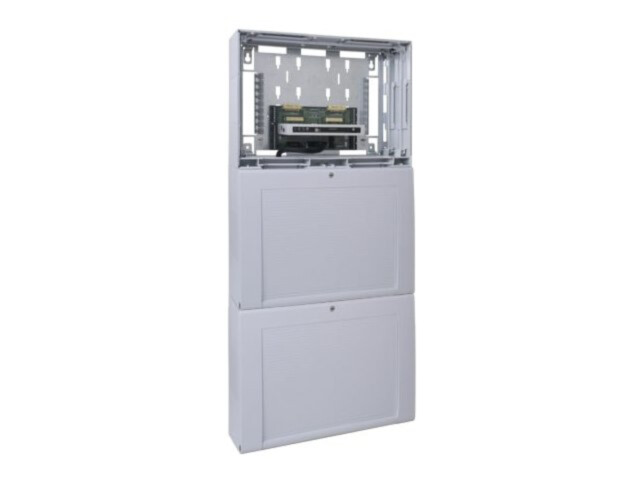

Esser FlexES Control FX10 fire alarm panel, 5 loops, for 2x24 Ah batteries

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€3,042.00 €3,772

Pre-order

SKU

FX808393

Product files

Datasheet

Toote kirjeldus

FlexES Control FX10 basic configuration with software support for 5 loops. The system supports up to 635 digital loop addresses in total, and the modular panel can be expanded up to 10 loops by exchanging the CPU licence. The redundant control module and the emergency mode of the loop modules keep it running even in case of a fault.

Key features

5 loops, expandable to 10 (CPU licence exchange)
Up to 635 loop addresses
Master/slave CPU, redundant control module
4 freely programmable outputs and an output for the alarm transmission unit
230 V AC, 24 V DC output, 2x24 Ah batteries

Technical data

Quiescent current	approx. 192 mA (base model w/o display and operating unit) approx. 348 mA (base model with display and operating unit)
Rated current	0.8 A
Rated voltage	230 V AC
Frequency	50 … 60 Hz
Output voltage	24 V DC
Current for external devices	3 A
Batteries	4 x 12 V / 26 Ah
Protection rating	IP 30
Operating temperature	5 °C … 45 °C
Storage temperature	-10°C … 50°C
Humidity	< 95 % (non-condensing)
Material	ABS, 10% glass fiber reinforced, V - 0
Colour	gray, similar to Pantone 538
Dimensions	450 × 960 × 185 mm (W × H × D)
Weight	approx. 15.1 kg (incl. neutral front) approx. 17 kg (incl. operating unit)
