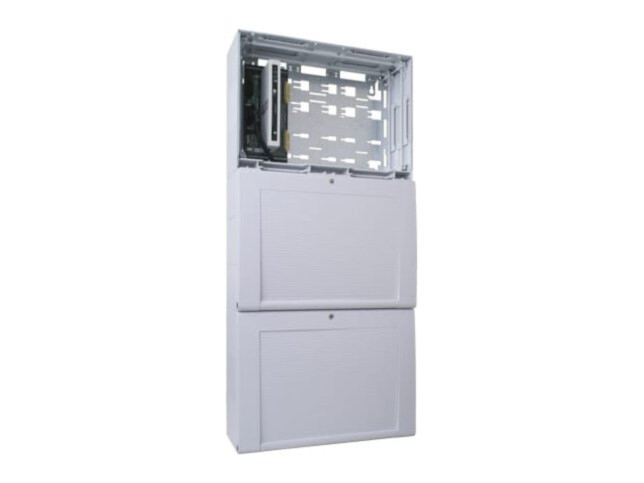

Esser FlexES Control FX18 fire alarm panel, 10 loops, for 2x24 Ah batteries

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€3,267.00 €4,051

In stock 1

SKU

FX808396

Product files

Datasheet

Toote kirjeldus

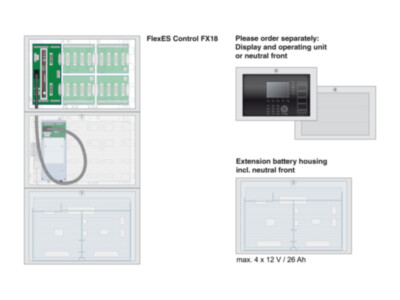

FlexES Control FX18 hardware with software support for 10 loops and up to 1,270 digital loop addresses. Since the hardware is already sized for 18 loops, the panel is expanded to 18 loops just by exchanging the CPU licence.

Key features

10 loops, up to 1,270 addresses
Expandable to 18 loops by licence only
Master/slave CPU, redundant control module
4 programmable outputs and an output for the alarm transmission unit
230 V AC, 24 V DC output, 2x24 Ah batteries

Technical data

Quiescent current	approx. 192 mA (base model w/o display and operating unit) approx. 348 mA (base model with display and operating unit)
Rated current	0.8 A
Rated voltage	230 V AC
Frequency	50 … 60 Hz
Output voltage	24 V DC
Current for external devices	3 A
Batteries	4 x 12 V/26 Ah
Protection rating	IP 30
Operating temperature	5 °C … 45 °C
Storage temperature	-10°C … 50°C
Humidity	< 95 % (non-condensing)
Material	ABS, 10% glass fiber reinforced, V - 0
Colour	gray, similar to Pantone 538
Dimensions	450 × 960 × 185 mm (W × H × D)
Weight	approx. 15.1 kg (incl. neutral front) approx. 17 kg (incl. operating unit)
