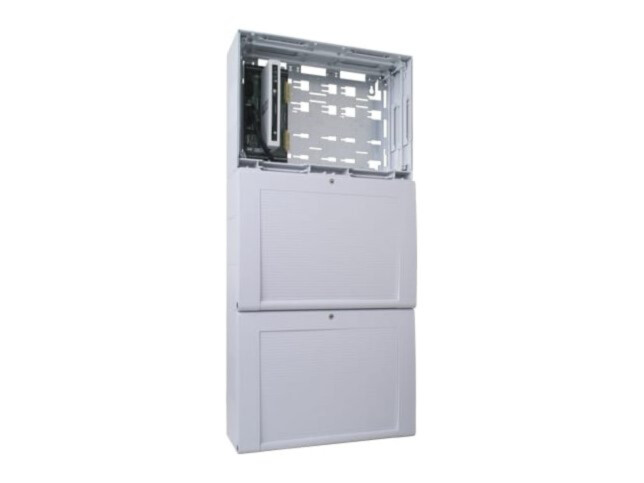

Esser FlexES Control FX18 fire alarm panel, 18 loops, for 2x24 Ah batteries

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€4,106.00 €5,091

Pre-order

SKU

FX808397

Product files

Datasheet

Toote kirjeldus

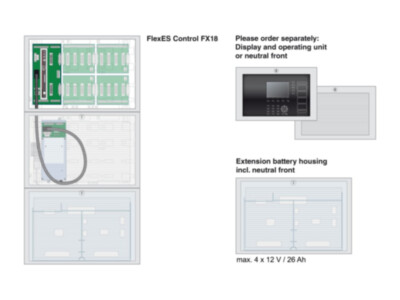

FlexES Control FX18 basic configuration with software support for 18 loops and up to 2,286 digital loop addresses, for large sites. The redundant control module and the emergency mode of the loop modules keep the system running even in case of a fault.

Key features

18 loops, up to 2,286 addresses
Master/slave CPU, redundant control module
Combinable loop and spur technology
4 programmable outputs and an output for the alarm transmission unit
230 V AC, 24 V DC output, 2x24 Ah batteries

Technical data

Quiescent current	approx. 192 mA (base model w/o display and operating unit) approx. 348 mA (base model with display and operating unit)
Rated current	0.8 A
Rated voltage	230 V AC
Frequency	50 … 60 Hz
Output voltage	24 V DC
Current for external devices	3 A
Batteries	4 x 12 V/26 Ah
Protection rating	IP 30
Operating temperature	5 °C … 45 °C
Storage temperature	-10°C … 50°C
Humidity	< 95 % (non-condensing)
Material	ABS, 10% glass fiber reinforced, V - 0
Colour	gray, similar to Pantone 538
Dimensions	450 × 960 × 185 mm (W × H × D)
Weight	approx. 15.1 kg (incl. neutral front) approx. 17 kg (incl. operating unit)
