Esser FlexES Control FX2 fire alarm panel, 2 loops, for 2x12 Ah batteries

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€2,649.00 €3,285

Pre-order

SKU

FX808392

Product files

Datasheet

Toote kirjeldus

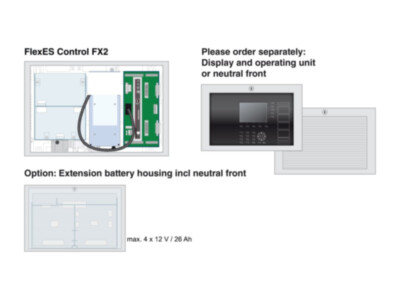

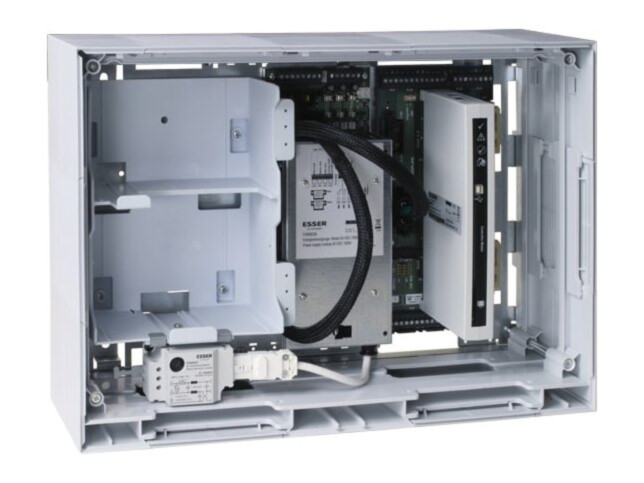

FlexES Control FX2 basic set with module slots and software support for two modules. Loop and spur technology can be combined and module functions are freely configurable. The emergency mode of the loop modules increases reliability.

Key features

2 loops
Combinable loop and spur technology
4 programmable outputs and an output for the alarm transmission unit
Emergency mode of the loop modules
230 V AC, 24 V DC output, 2x12 Ah batteries

Technical data

Quiescent current	approx. 192 mA (base model w/o display and operating unit) approx. 348 mA (base model with display and operating unit)
Rated current	0.8 A
Rated voltage	230 V AC
Frequency	50 … 60 Hz
Output voltage	24 V DC
Current for external devices	3 A
Batteries	2 x 12 V/12 Ah (max. 4 x 12 V/26 Ah)
Protection rating	IP 30
Operating temperature	5 °C … 45 °C
Storage temperature	-10°C … 50°C
Humidity	< 95 % (non-condensing)
Material	ABS, 10% glass fiber reinforced, V - 0
Colour	gray, similar to Pantone 538
Dimensions	450 × 320 × 185 mm (W × H × D)
Weight	approx. 6.5 kg
